| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
414 pcs
|
414 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Housing Material | |
| Ingress Protection | |
| Insulation Resistance | |
| Mating Cycle Durability | |
| Mating Part | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Seal Material | |
| Termination Style | |
| Wire Gauge Range |

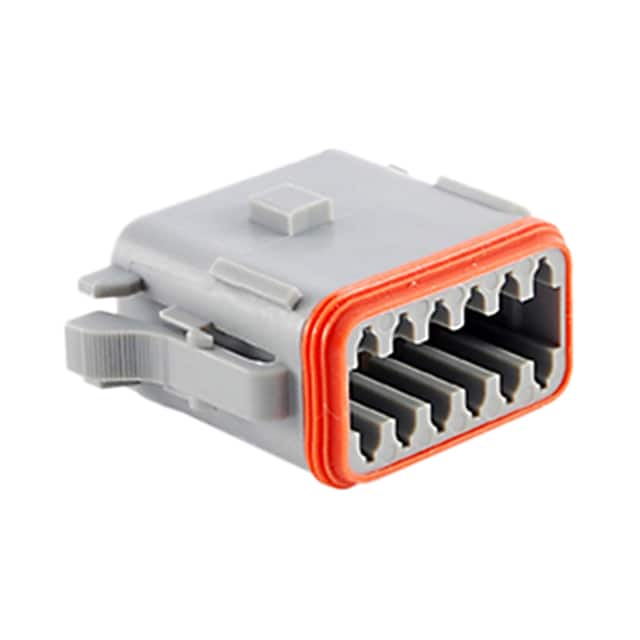

The Amphenol Sine Systems AT06-12SA-RD01 is a 12-position plug housing from the AT Series, designed for use with female socket contacts (14-20 AWG wire) and crimp termination. The housing is free hanging (in-line) with a latch lock fastening system, making it suitable for quick and reliable connections in sealed environments.
Key specifications include a current rating of 13 A, operating temperature range from -55°C to +125°C, dielectric withstanding voltage of 1500 V AC, and insulation resistance of 1000 MΩ minimum at 25°C. The connector is IP67 rated when mated and RoHS3 compliant.
The housing is made of thermoplastic with silicone rubber seals, supporting up to 100 mating cycles and accepting wire sizes from 14 to 20 AWG. The mating part is the AT04-12PX* receptacle series.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.86 | $3.86 |
| 10+ | $3.06 | $3.06 |
| 25+ | $2.91 | $2.91 |
| 100+ | $2.59 | $2.59 |
| 250+ | $2.40 | $2.40 |
| 420+ | $2.25 | $2.25 |
| 2,520+ | $1.98 | $1.98 |
| 5,040+ | $1.94 | $1.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector is rated for 13 A.
The operating temperature range is -55°C to +125°C.
The connector accepts 14-20 AWG wire.
Yes, the connector is IP67 rated when mated.
The connector uses crimp termination.
The dielectric withstanding voltage is 1500 V AC with leakage less than 2 mA.
