| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Housing Material | |
| IP Rating | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Mating Cycle Durability | |
| Mating Part | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Potting Feature | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

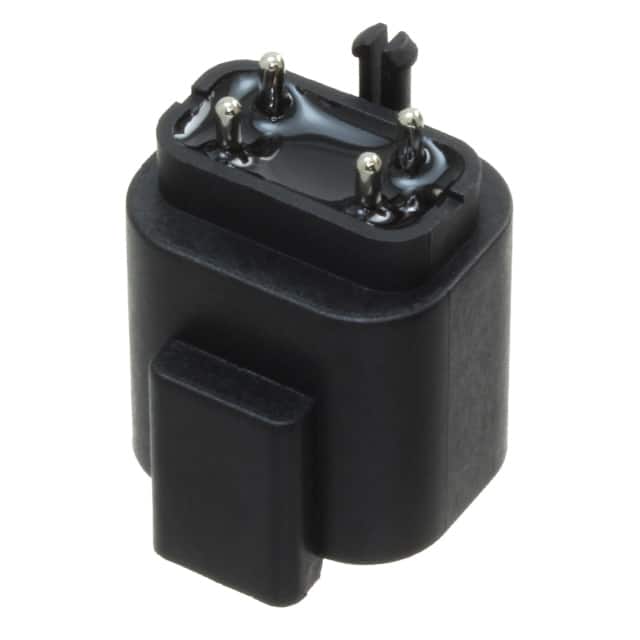

The AT04-4P-BM04 is a 4-position, 2-row shrouded receptacle header from Amphenol Sine Systems, part of the A Series. It features male pins with circular copper alloy contacts finished in nickel. The housing is black thermoplastic with a 4-wall shrouded design and a latch holder fastening system. Mounting is through hole with solder termination. The connector is rated for 13A continuous current and has a dielectric withstanding voltage of 1500V AC with less than 2mA leakage. Insulation resistance is 1000 MΩ minimum at 25°C. It operates over a temperature range of -55°C to +125°C and achieves IP67 protection when mated. Mating cycle durability is rated at 100 cycles. The design includes board lock and potting wall features, though this variant (AT04-4P-BM04) has no potting reservoir. The mating plug is the AT06-4S* series. This connector is intended for board-to-cable/wire applications in harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.95 | $3.95 |
| 10+ | $3.41 | $3.41 |
| 25+ | $3.05 | $3.05 |
| 100+ | $2.90 | $2.90 |
| 250+ | $2.63 | $2.63 |
| 400+ | $2.50 | $2.50 |
| 5,200+ | $2.28 | $2.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
13A.
Through hole with solder termination.
IP67 when mated.
-55°C to +125°C.
100 cycles.
1500V AC with less than 2mA leakage.
