| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
270 pcs
|
270 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Mating Cycle Durability | |
| Max Working Pressure | |
| Moisture Resistance (Mated) | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

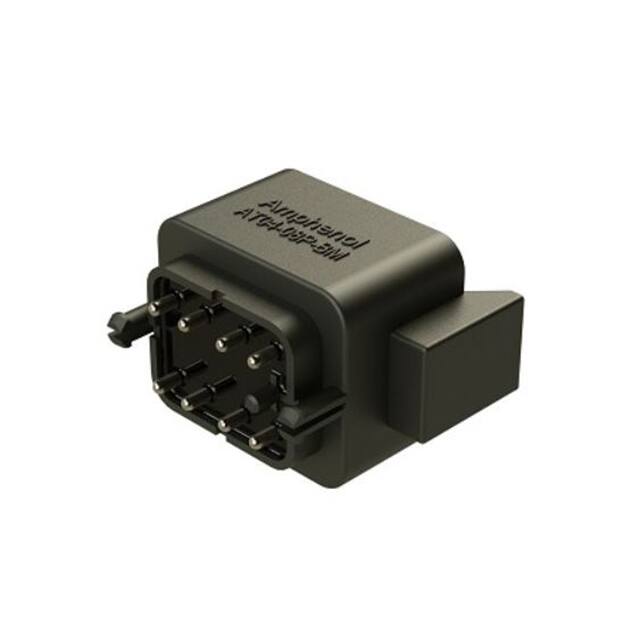

The Amphenol Sine Systems AT04-08PB-BM04 is an 8 position board-to-cable/wire receptacle from the A Series. It features a through hole solder termination and a shrouded 4-wall design with latch holder fastening for secure mating.
This connector is rated for 13A current and can operate over a temperature range of -55°C to +125°C. It provides IP67 protection when mated and includes a board lock and potting wall for robust mounting and sealing. The housing is made of black thermoplastic and the contacts are copper alloy with a nickel finish.
The dielectric withstand voltage is 1500 VAC with less than 2 mA leakage, and minimum insulation resistance is 1000 MΩ at 25°C. It is rated for at least 100 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.16 | $6.16 |
| 10+ | $5.23 | $5.23 |
| 25+ | $4.91 | $4.91 |
| 50+ | $4.67 | $4.67 |
| 100+ | $4.45 | $4.45 |
| 270+ | $4.15 | $4.15 |
| 540+ | $3.94 | $3.94 |
| 1,080+ | $3.75 | $3.75 |
| 2,700+ | $3.52 | $3.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 13A.
The operating temperature range is -55°C to +125°C.
The connector has an IP67 rating when mated.
It has 8 positions arranged in 2 rows, all loaded.
