Mfr Part #:

ASUB-277-15TP24

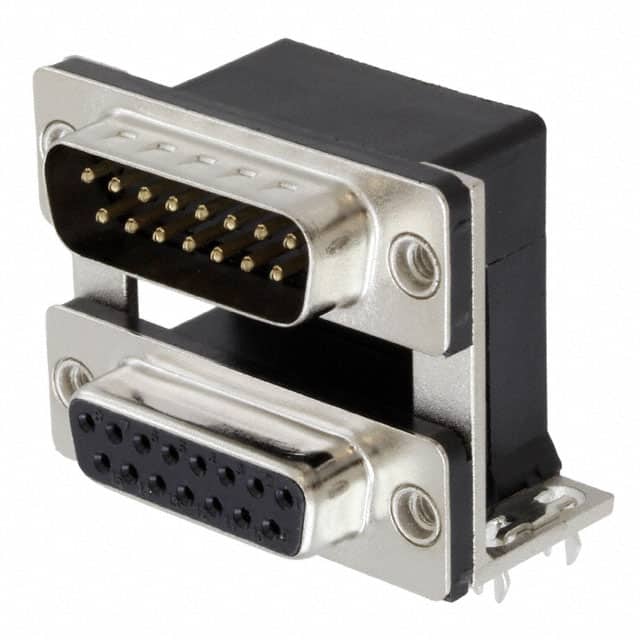

Name: ASUB-277-15TP24
Brand: Assmann WSW Components
SKU: ASUB-277-15TP24

Description:

CONN D-SUB PLUG/RCPT 15P R/A SLD

Stock on Request

ASUB-277-15TP24 Description

Short technical summary and product information.

CONN D-SUB PLUG/RCPT 15P R/A SLD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

A-DD 15 B-3

Assmann WSW Components

CONN D-SUB PLUG/RCPT 15P R/A SLD

A-DD 15 B-2

Assmann WSW Components

CONN D-SUB PLUG/RCPT 15P R/A SLD

ASUB-277-15TP25

Assmann WSW Components

CONN D-SUB PLUG/RCPT 15P R/A SLD

Category	D-Sub Connector Assemblies
Manufacturer Name	Assmann WSW Components
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins; Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	3A
Features	Board Lock, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15, 15
Number of Rows	2, 2
Shell Material, Finish	Steel, Tin Plated
Shell Size, Connector Layout	2 (DA, A); 2 (DA, A)
Termination	Solder
