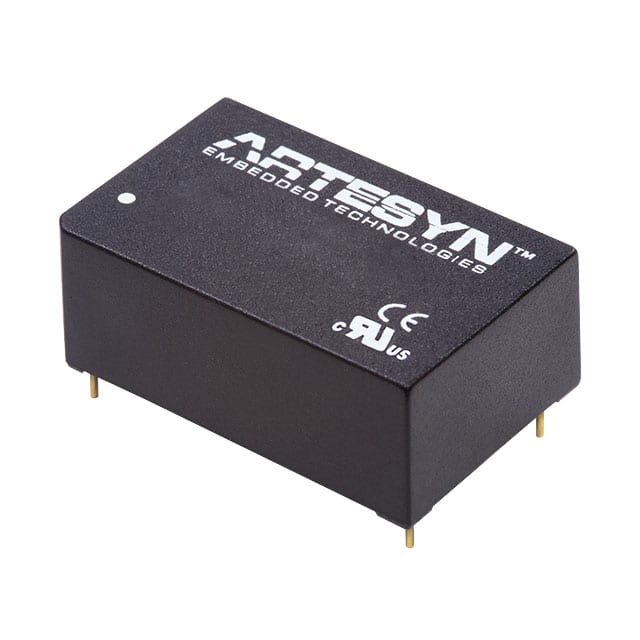

The Artesyn ASA01B12-M is a 6-watt isolated DC-DC converter from the ASA6W-M series, designed for demanding instrumentation and medical applications requiring reinforced insulation. It accepts a wide 2:1 input voltage range of 9-18V and delivers a fully regulated 12V output at up to 500mA.
Key electrical specifications include an efficiency of 80%, line regulation of ±0.5%, load regulation of 1.0%, and a ripple and noise of 180mV. The converter provides 4000Vac input-to-output isolation, with an insulation resistance of 10 Gohm and insulation capacitance of 13 pF. Protection features include overcurrent protection (OCP) and short-circuit protection (SCP).
The ASA01B12-M is housed in a compact 24-DIP module with 5 leads, measuring 31.8mm x 20.3mm x 10.4mm, and is designed for through-hole mounting. The case is made of non-conductive black plastic rated UL94V-0. It operates over a temperature range of -40°C to +75°C and has an MTBF of 1,000,000 hours.
| Qty | Low | High |
|---|---|---|
| 1+ | $60.64 | $60.64 |
| 5+ | $58.39 | $58.39 |
| 10+ | $58.04 | $58.04 |
| 25+ | $56.27 | $56.27 |
| 50+ | $55.46 | $55.46 |
| 100+ | $54.20 | $54.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9V to 18V DC.
It provides a single 12V output at up to 500mA (6W).
The input-to-output isolation voltage is 4000Vac.
The operating temperature range is -40°C to +75°C.
It comes in a 24-DIP Module with 5 leads, through-hole mounting.
The datasheet states RoHS compliance, but this is unverified.
It includes overcurrent protection (OCP) and short-circuit protection (SCP).
