| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,000 pcs
|
7000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Halogen Free | |
| Industrial Grade | |
| Interface | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Tape & Reel |

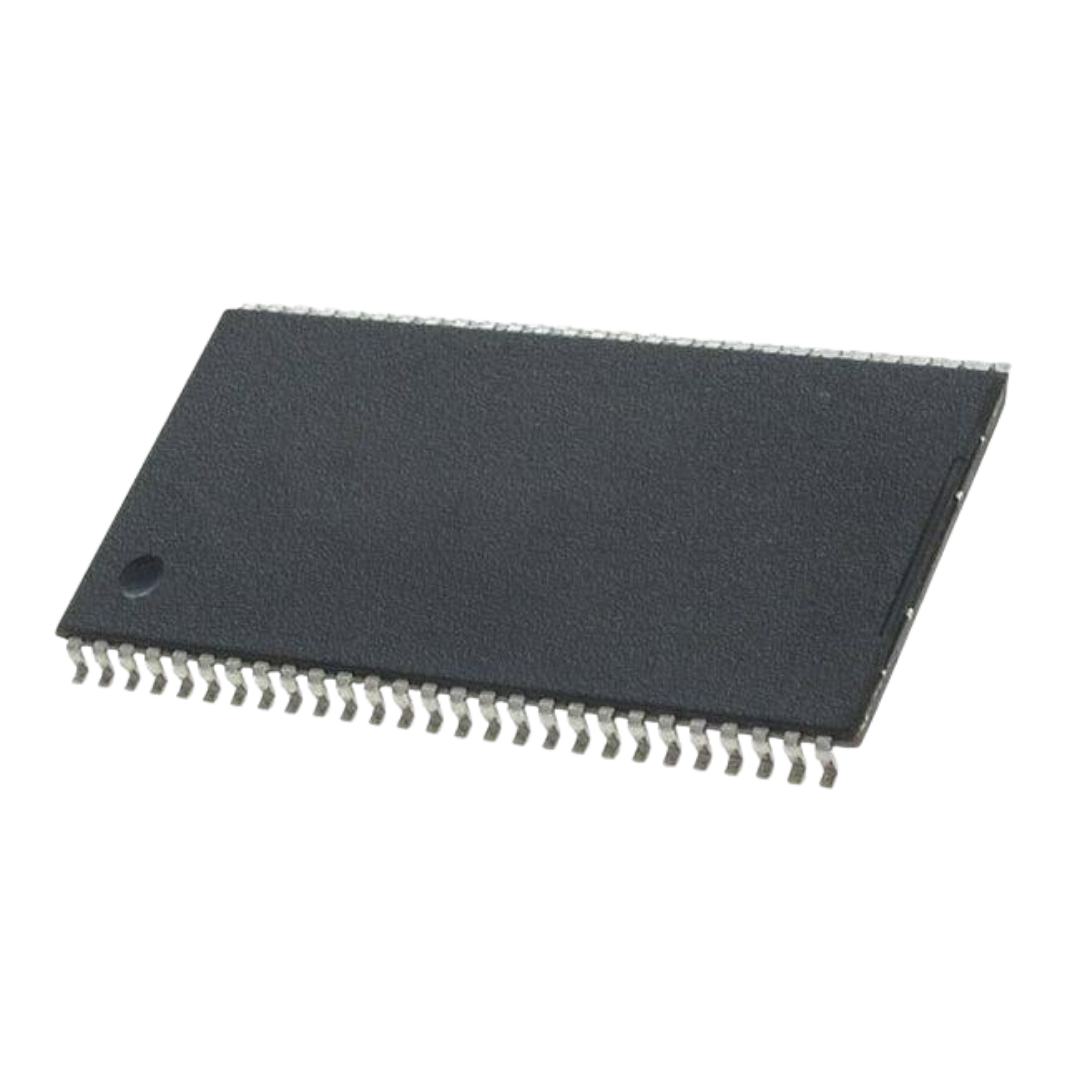

The Alliance AS4C8M16SA-6TINTR is a high-speed CMOS synchronous DRAM with a density of 128 Mbits. It is internally configured as 4 Banks of 2M word x 16 DRAM, providing a total organization of 8M x 16.
This SDRAM features a fast clock rate of up to 166 MHz and a fast access time from clock of 5.4 ns. It operates from a single +3.3V power supply and uses LVTTL interface logic. Programmable features include CAS Latency (2 or 3), Burst Length (1, 2, 4, 8, or full page), and Burst Type (Sequential or Interleaved).
The device supports Auto Refresh and Self Refresh functions, with 4096 refresh cycles required every 64ms. It is available in a 54-pin TSOP II package and is suitable for applications requiring high memory bandwidth, such as high-performance PC applications.
This specific part number, AS4C8M16SA-6TINTR, indicates the -6 speed grade (166 MHz) and the industrial temperature range of -40°C to 85°C, supplied in a TSOP II package.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AS4C8M16SA-6TINTR has a memory size of 128Mb and is organized as 8M x 16.
The maximum clock rate for the AS4C8M16SA-6TINTR is 166 MHz.
The AS4C8M16SA-6TINTR operates at a nominal voltage of 3.3V.
This SDRAM is rated for an industrial operating temperature range of -40°C to 85°C.
The AS4C8M16SA-6TINTR is supplied in a 54-pin TSOP II package.
Yes, the AS4C8M16SA-6TINTR is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for this part is 1.
