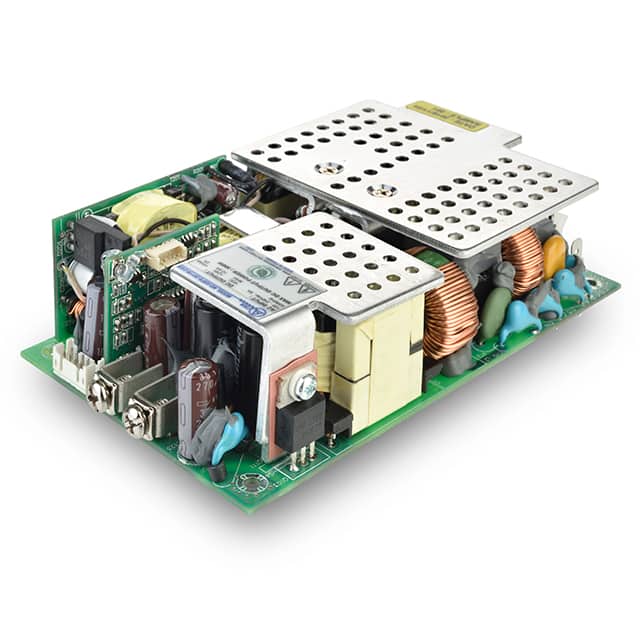

The Aras Power Technologies ARFS-3411M-2405 is a 336W AC/DC converter delivering a regulated +24.0 Vdc output at 14A. It accepts a universal input range of 90-264 VAC at 47-63 Hz with active power factor correction.
Key electrical specifications include typical 90% efficiency, 16ms hold-up time at 200W load, and no minimum load requirement. The converter features remote sense compensating for up to 0.5V drop, a PowerGood signal, and a PSON# signal for output enable. Protection features include overvoltage (latch-mode), overpower, short circuit, and thermal protection (all auto-recovery except overvoltage).
The ARFS-3411M-2405 comes in an open frame package for chassis mounting with dimensions 127.0mm x 76.2mm x 35.6mm. Forced air cooling of 15CFM is required. Operating temperature range is 0°C to 70°C with derating, and MTBF exceeds 500 kHrs.
The output voltage is +24.0 Vdc.
The total output power is 340W; the unit is rated for 336W continuous.
It includes a fuse for input protection.
It operates from 0°C to 70°C with derating.
It is an open frame module designed for chassis mounting.
