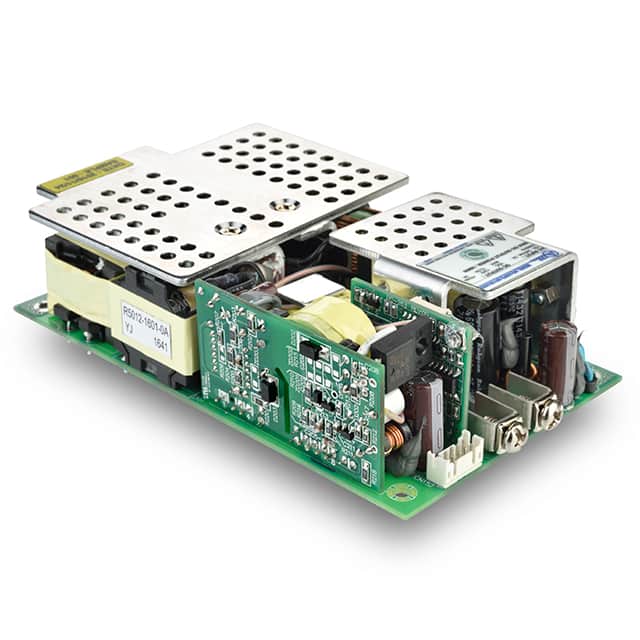

This Aras Power Technologies ARFS-3011M-1205 is a 300-watt, single-output AC/DC power supply designed for open frame applications. It operates with a universal input voltage range of 90-264 VAC and provides a stable 12Vdc output.
The unit boasts high efficiency of 90% typical and features like standby output and universal input. It is designed for reliability with an MTBF exceeding 500,000 hours and includes protections such as overvoltage, overpower, short circuit, and thermal auto-recovery.
With dimensions of 5.00" x 3.00" x 1.40", it is suitable for chassis mounting. The ARFS-3011M-1205 meets FCC Class B and EN55032 Class B emissions standards and is suitable for medical applications.
Key electrical specifications include a setpoint accuracy of +/- 1%, a maximum output current of 25A, and a ripple/noise level of 120mVp-p. It also offers remote sense capability to compensate for voltage drops.
The output voltage is +12.0 Vdc and the maximum output current is 25.0 A.
The input voltage range is 90-264 VAC.
The operating temperature range is 0°C to 70°C with derating.
It is an open frame package designed for chassis mounting.
No, the converter requires no minimum load for operation.
Overvoltage protection (latch-mode), auto-recovery overpower, short circuit, and thermal protection.
The typical efficiency is 90%.
