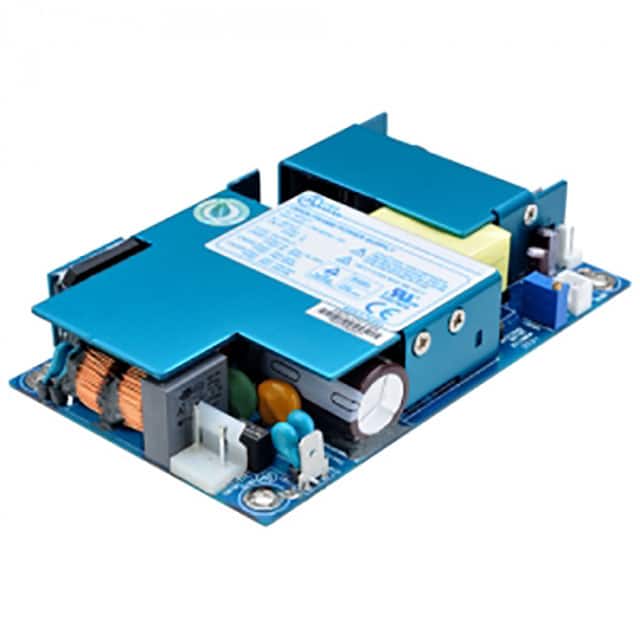

The Aras Power Technologies ARFS-1511-1200 is a 150-watt, single-output AC/DC switching power supply designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90-264 VAC and features active Power Factor Correction to meet EN61000-3-2 standards.
This open frame power supply delivers a stable 12V output with a maximum current of 12.5A and a setpoint accuracy of +/- 1%. It boasts a typical efficiency of 90% and provides 150W of total output power. Key protection features include overvoltage, overpower, and short circuit latch-mode protection, along with thermal protection options.
The unit is housed in an open frame package measuring 5.00" x 3.00" x 1.08", suitable for chassis mounting. It operates within a temperature range of 0°C to 70°C, with derating above 50°C. The power supply also offers features like remote sense capability and is compliant with standards such as CB and CE.
The input voltage range is 90 to 264 VAC.
The output is +12.0V at 150W maximum (12.5A).
The operating temperature range is 0°C to +70°C with linear derating above 50°C to 50% load at 70°C.
The converter measures 127.0mm x 76.2mm x 27.4mm (5.00" x 3.00" x 1.08") and is designed for chassis mount.
Overvoltage, overpower, and short circuit protection are all latch-mode. Thermal protection is optional auto-recovery or latch off.
Typical efficiency is 90%.
No minimum load is required.
