| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch - Mating | |
| Termination Style | |
| Type |

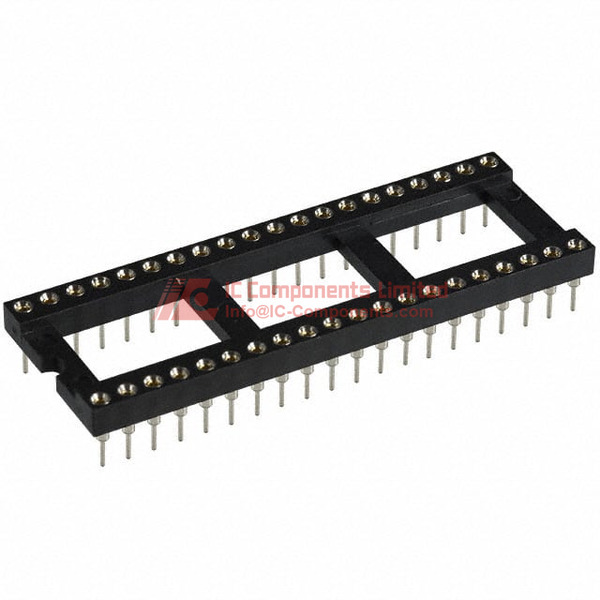

This Assmann WSW Components AR40-HZL-TT-R is a 40-position IC DIP socket designed for reliable connections. It features a standard 0.100" pitch for both mating and post spacing, making it suitable for various PCB applications.
The socket is constructed with a Thermoplastic, Polyester housing and Beryllium Copper contacts, ensuring durability and good conductivity. The contact finish is Tin, and the plating thickness on the posts is 5.08µm. It has a current rating of 3A and a contact resistance of 4mOhm.
Designed for Through Hole mounting, this socket operates within a temperature range of -40°C to 105°C. The material has a UL94 V-0 flammability rating. The open frame design facilitates easy component insertion and removal.
This component is RoHS Compliant and has an MSL of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.79 | $6.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 105°C.
The AR40-HZL-TT-R has 40 positions.
The pitch for both mating and post is 0.100" (2.54mm).
The AR40-HZL-TT-R uses Through Hole mounting.
The current rating is 3A.
Yes, the AR40-HZL-TT-R is RoHS3 Compliant.
