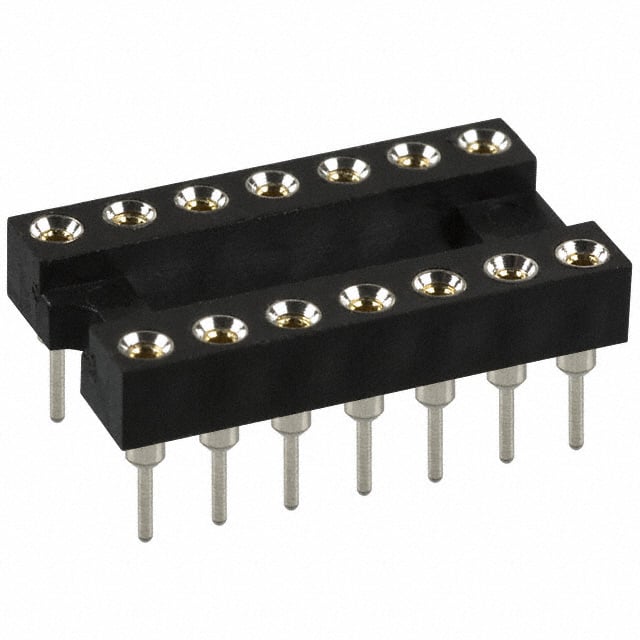

The AR14-HZL-TT is a 14-position DIP IC socket manufactured by Assmann WSW Components, designed for through-hole mounting on PCBs. It features a 2.54mm (0.100") pitch and 0.3" (7.62mm) row spacing, accepting standard 14-pin DIP ICs.
The open frame design allows for improved airflow and easier inspection of solder joints. Contacts are made of beryllium copper with a 200µin tin finish, providing reliable electrical connections. The housing is constructed from thermoplastic polyester, offering good mechanical stability.
This socket operates over a temperature range of -40°C to +105°C, suitable for commercial and industrial environments. It is intended for solder termination and is marked as RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
| 10+ | $1.08 | $1.08 |
| 33+ | $0.99 | $0.99 |
| 66+ | $0.95 | $0.95 |
| 132+ | $0.90 | $0.90 |
| 264+ | $0.86 | $0.86 |
| 528+ | $0.82 | $0.82 |
| 1,023+ | $0.78 | $0.78 |
| 2,508+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions arranged in a 2 x 7 grid.
2.54mm (0.100").
Through hole.
Tin with a thickness of 200µin (5.08µm).
-40°C to 105°C.
