| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance @ Frequency | |
| Current | |
| Current - Peak Pulse (8/20µs) | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Line Protection | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Voltage - Reverse Standoff (Typ) |

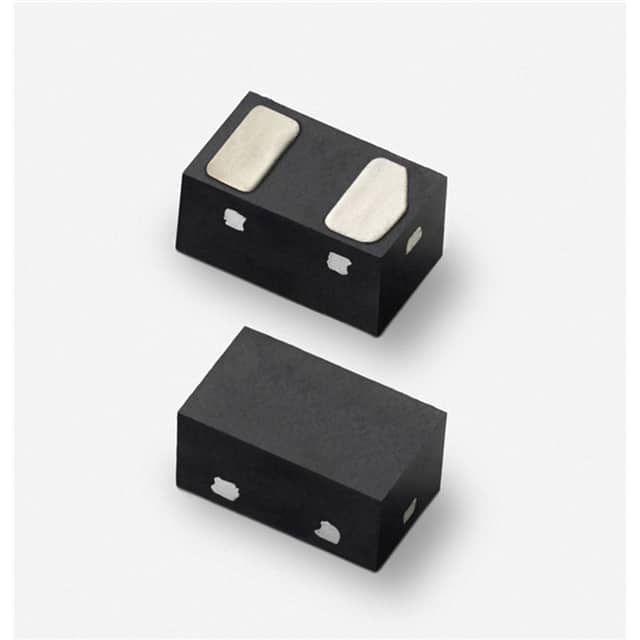

The AQ1210-01ETG is a Zener clamping TVS diode array designed for automotive applications. It features a reverse standoff voltage of 11V (typical) and can handle a peak pulse current of 15A under an 8/20µs waveform. The device offers a capacitance of 25pF at 1MHz, making it suitable for high-speed signal line protection.
This surface-mount component is housed in a compact SOD-882 package and operates over a wide temperature range of -40°C to 150°C. It is a bidirectional channel device, providing robust protection against transient voltage events in automotive electronics.
The AQ1210-01ETG is not intended for power line protection, as indicated by its specification. It is optimized for signal line ESD and surge protection in automotive environments, such as infotainment, ADAS, and body control modules.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.42 | $0.42 |
| 100+ | $0.27 | $0.27 |
| 500+ | $0.20 | $0.20 |
| 1,000+ | $0.18 | $0.18 |
| 2,000+ | $0.17 | $0.17 |
| 5,000+ | $0.15 | $0.15 |
| 10,000+ | $0.11 | $0.11 |
| 20,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical reverse standoff voltage is 11V.
The peak pulse current is 15A under an 8/20µs waveform.
The capacitance is 25pF at 1MHz.
It is available in a surface mount SOD-882 package.
Yes, it is specifically designed for automotive applications.
The operating temperature range is -40°C to 150°C.
Yes, it has 1 bidirectional channel.
