| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
238 pcs
|
238 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Current - Output | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output | |
| Width |

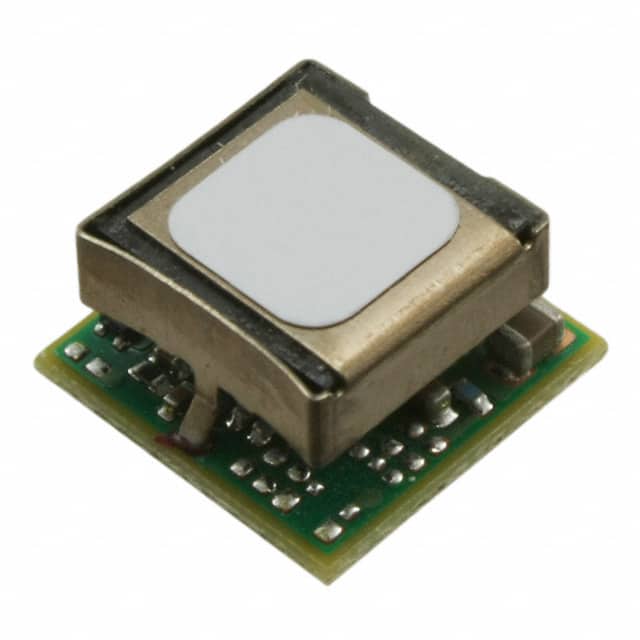

The APXK004A0X-SRZ is a Non-Isolated Point-of-Load (PoL) module from ABB Power Electronics designed for commercial ITE applications. It delivers a single adjustable output voltage from 0.6V to 8V at up to 4A, with a maximum output power of 32W. The module achieves a high efficiency of 96.1%, reducing thermal dissipation in space-constrained designs.
This converter includes protection features such as overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). Control is provided via an enable input with active-low logic, and remote on/off capability is supported. The module is surface-mountable and comes in a compact 12.2mm x 12.2mm x 7.3mm package.
The operating temperature range spans -40°C to 85°C, making it suitable for a variety of industrial and commercial environments. The device is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $10.95 | $10.95 |
| 5+ | $10.55 | $10.55 |
| 10+ | $10.38 | $10.38 |
| 25+ | $10.10 | $10.10 |
| 50+ | $9.93 | $9.93 |
| 100+ | $9.79 | $9.79 |
| 250+ | $9.78 | $9.78 |
| 400+ | $9.50 | $9.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.6V to 8V.
The maximum output current is 4A.
The efficiency is 96.1%.
The operating temperature range is -40°C to 85°C.
The module measures 12.2mm x 12.2mm x 7.3mm.
Yes, it is listed as RoHS3 compliant.
It includes overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO).
