| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

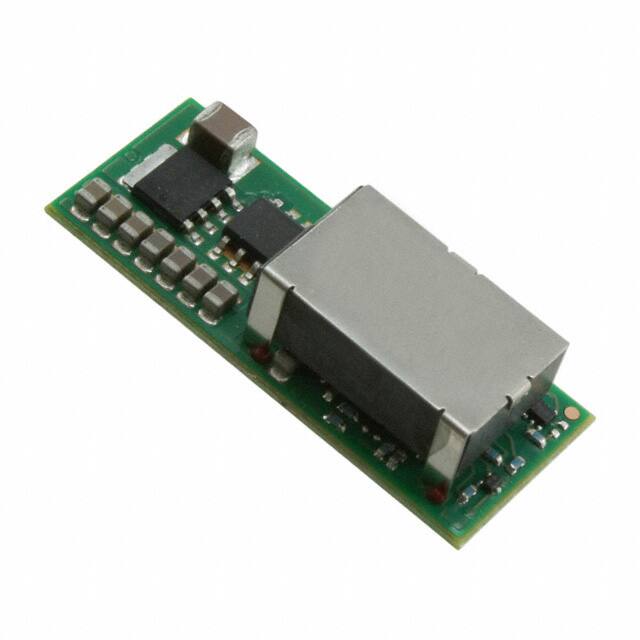

The APTS020A0X3-SRZ is a Non-Isolated Point-of-Load (PoL) DC DC converter module from ABB Power Electronics. It provides a single regulated output adjustable from 0.7V to 5.5V with a maximum output current of 20A, supporting up to 110W of output power. The module achieves a typical efficiency of 92%, reducing thermal dissipation in space-constrained designs.
This converter operates from a 4.5V minimum input voltage and includes comprehensive protection features: overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO). Control is via an enable input with active-low logic, and remote on/off capability is provided.
The module is housed in a 10-SMD surface-mount package measuring 33.0mm x 13.5mm x 8.5mm, suitable for automated assembly. It is designed for commercial ITE (Information Technology Equipment) applications and operates over a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.66 | $22.66 |
| 5+ | $20.31 | $20.31 |
| 10+ | $20.04 | $20.04 |
| 25+ | $19.71 | $19.71 |
| 50+ | $19.49 | $19.49 |
| 100+ | $19.36 | $19.36 |
| 250+ | $19.26 | $19.26 |
| 500+ | $18.22 | $18.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.7V to 5.5V.
The maximum output current is 20A.
The operating temperature range is -40°C to 85°C.
It is housed in a 10-SMD Module surface mount package.
The part is listed as RoHS3 Compliant, but this status is unverified.
It includes overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO).
The typical efficiency is 92%.
