Mfr Part #:

APH-HDBNCJ-SMAJ

Name: APH-HDBNCJ-SMAJ
Brand: Amphenol RF
SKU: APH-HDBNCJ-SMAJ

Mfr Name: Amphenol RF

Description:

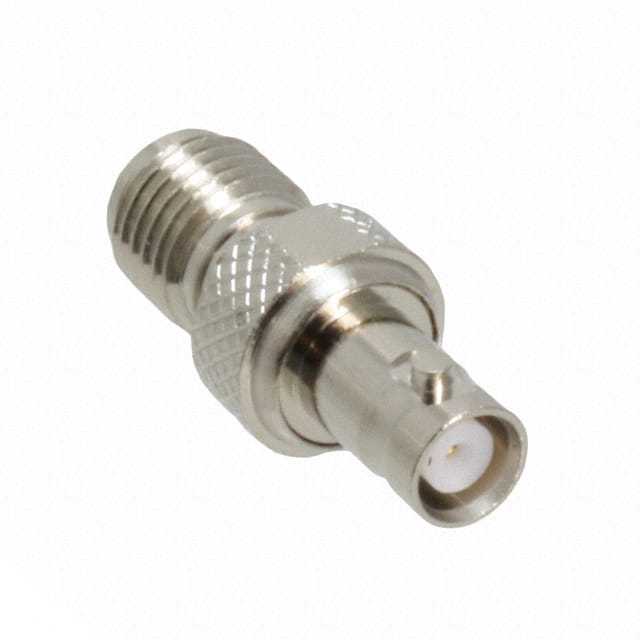

CONN ADAPT HDBNC JACK - SMA JACK

Stock on Request

APH-HDBNCJ-SMAJ Description

Short technical summary and product information.

CONN ADAPT HDBNC JACK - SMA JACK

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

APH-HDBNCJ-SMAP

Amphenol RF

CONN ADAPT BNC HD JACK-SMA JACK

Category	Coaxial Connector (RF) Adapters
Manufacturer Name	Amphenol RF
Adapter Series	BNC, HD to SMA
Adapter Type	Jack to Jack
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC HD Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Fastening Type	Bayonet Lock, Threaded
Frequency	6 GHz
Impedance	50Ohm
Mounting Type	Free Hanging (In-Line)
Style	Straight
