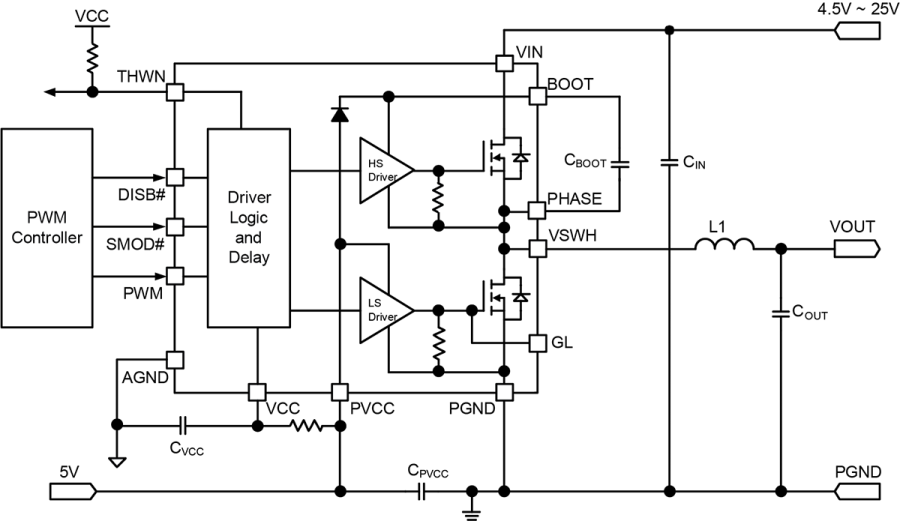

The AOZ5116QI is a high-performance DrMOS (Driver-MOSFET) module from Alpha and Omega Semiconductor, designed for demanding power applications. This integrated power stage offers a continuous output current of 55A and can handle peak currents up to 120A with a 10µs pulse.
It features a wide input voltage range from 4.5V to 25V, with an absolute maximum rating of 30V. The module supports switching frequencies up to 2MHz, making it suitable for high-frequency power designs. Control is managed via PWM and SMOD# inputs, compatible with 3V and 5V logic, and it supports Tri-State PWM operation. The low-side MOSFET can be configured for diode emulation mode to enhance light-load efficiency.
Packaged in an industry-standard 5mm x 5mm QFN-31L package, the AOZ5116QI is designed for surface mounting. It includes features like a thermal warning output and compatibility with Intel® Power State 4. The DISB# pin controls the enable/disable function of the module.
Applications for the AOZ5116QI include automotive systems, cloud servers, telecom infrastructure, computing, graphic cards, notebooks, consumer electronics, industrial power supplies, and motor drives.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AOZ5116QI operates with an input voltage from 4.5V to 25V, with an absolute maximum rating of 30V.
The maximum continuous output current is 55A.
The peak output current is 120A for a 10µs pulse.
The switching frequency can be set up to 2MHz.
The device is packaged in a QFN5x5A-31L, measuring 5.0x5.0x0.75mm.
Shutdown is activated when DISB# is low.
Diode emulation mode is enabled when SMOD# is high or tri-state.
