| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |
The AOZ1375DI-01 is a bidirectional, current-limited load switch designed for circuit protection in applications requiring robust power management. It operates across a wide input voltage range of 3.4V to 23V, with both VINT and VBUS terminals rated for up to 28V.
Key electrical specifications include a typical on-resistance of 17.8mΩ and a continuous current capability of 6A, with a peak current capacity of 20A. The device offers programmable current limiting, selectable over-voltage protection, and programmable soft-start to manage inrush current for capacitive loads. It also includes under-voltage lockout and thermal shutdown protection.
This load switch is suitable for applications such as Thunderbolt/USB Type-C PD power switching, notebooks, desktops, monitors, and docking stations. Its bidirectional operation allows it to sink current from VBUS to VINT or source current from VINT to VBUS.

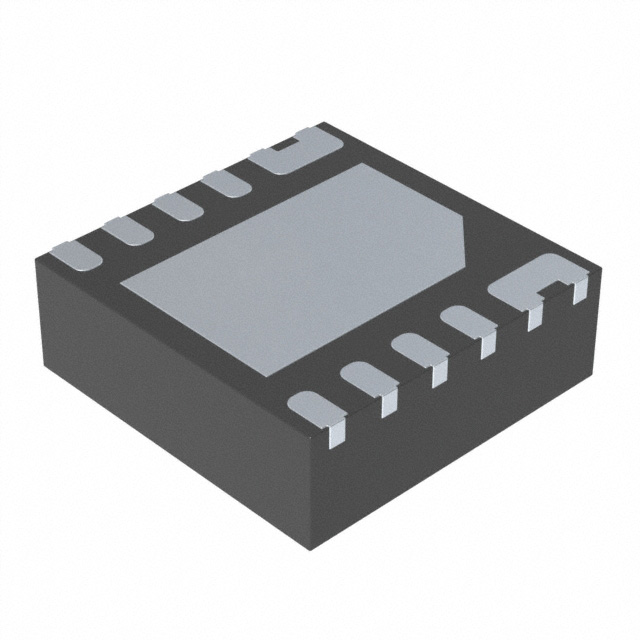

The AOZ1375DI-01 is supplied in a compact 3mm x 3mm DFN-12L package, designed for surface mounting. It operates within a temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.4V to 23V.
12-DFN (3x3) with exposed pad, also known as DFN3x3-12L.
-40°C to +85°C.
6A.
20A.
Current limiting, over temperature, over voltage, short circuit, and UVLO.
17.8mOhm.
