Mfr Part #:

ANT-GNSSCP-SM12L1

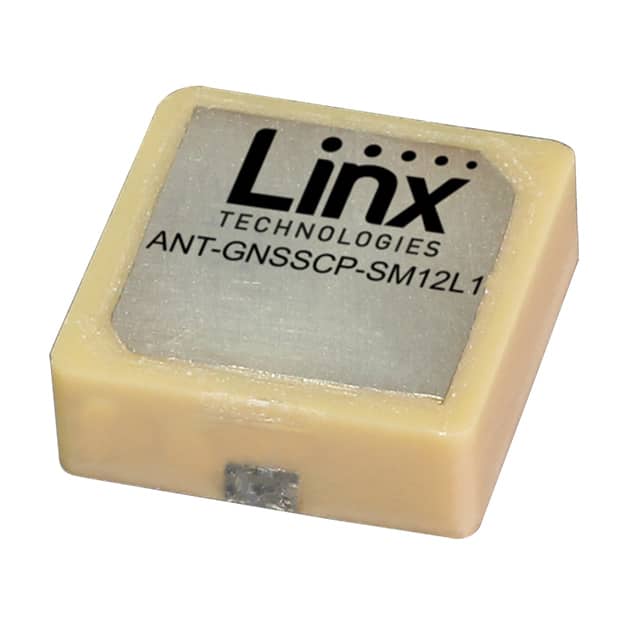

Name: ANT-GNSSCP-SM12L1
Brand: Linx Technologies Inc.
SKU: ANT-GNSSCP-SM12L1

Description:

RF ANT GNSS PATCH L1 12X12 SMD

Stock on Request

ANT-GNSSCP-SM12L1 Description

Short technical summary and product information.

RF ANT GNSS PATCH L1 12X12 SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Linx Technologies Inc.
Antenna Type	Ceramic Patch
Applications	Beidou, Galileo, GLONASS, GNSS, GPS
Frequency (Center	1.575GHz, 1.602GHz
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency Range	1.567GHz ~ 1.609GHz
Gain	2.9dBi, 1dBi
Height (Max)	0.157" (4.00mm)
Mounting Type	Surface Mount
Number of Bands	2
Power	8 W
RF Family	Navigation
Return Loss	-2.5dB, -2.9dB
Termination	Solder
VSWR	7, 6.1
