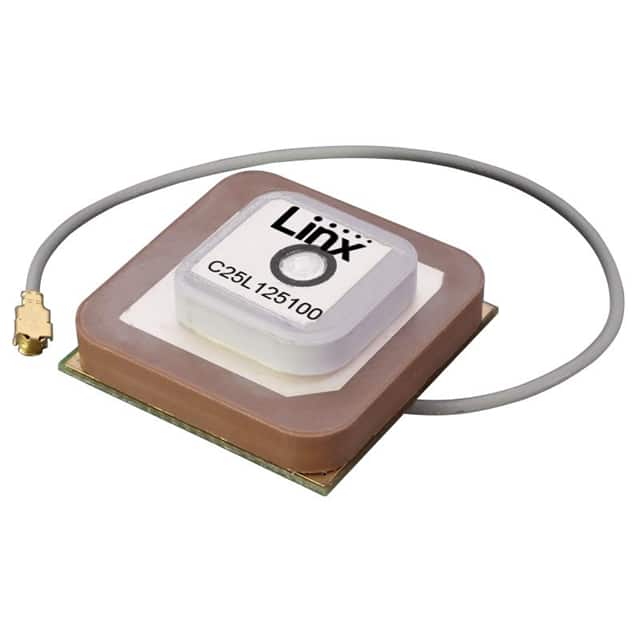

Mfr Part #:

ANT-GNCP-C25L125100

Name: ANT-GNCP-C25L125100
Brand: Linx Technologies Inc.
SKU: ANT-GNCP-C25L125100

Description:

RF ANT GNSS L1L2L5 25X25 LNA UFL

Stock on Request

ANT-GNCP-C25L125100 Description

Short technical summary and product information.

RF ANT GNSS L1L2L5 25X25 LNA UFL

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Linx Technologies Inc.
Antenna Type	Ceramic Patch
Applications	Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss
Features	Cable - 100mm
Frequency (Center	1.176GHz, 1.202GHz, 1.227GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency Range	1.1164GHz ~ 1.189GHz, 1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz
Gain	29.1dBi, 18.2dBi, 26.6dBi, 10.4dBi, 25.3dBi, 26.9dBi, 23.9dBi
Height (Max)	0.472" (12.00mm)
Mounting Type	Surface Mount
Number of Bands	7
RF Family	Navigation
Return Loss	-8.4dB, -15.6dB, -13.2dB, -17.5dB, -15.4dB, -15.4dB, -16.4dB
Termination	U.FL
VSWR	2.2, 1.4, 1.6, 1.3, 1.4, 1.4, 1.4
