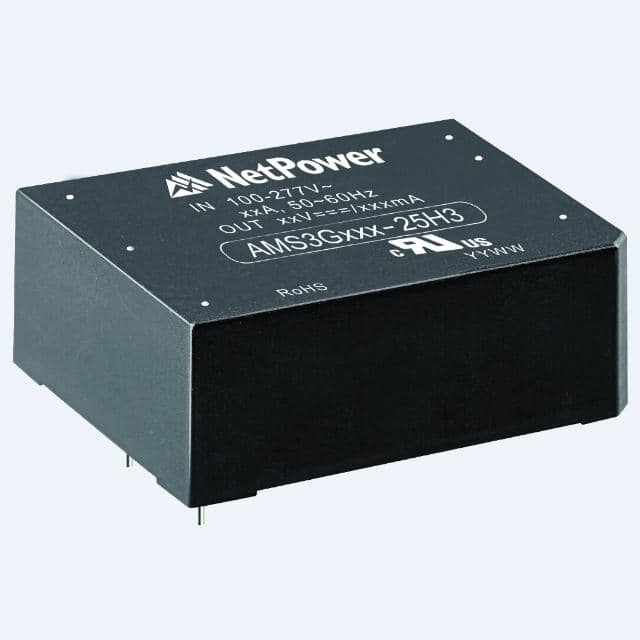

The NetPower AMS3G240-25H3 is an enclosed AC/DC power converter with a power rating of 25W and an output voltage of 24V. It accepts a wide input voltage range from 85 to 305 VAC or 100 to 430 VDC, making it suitable for various global applications.
This converter is designed for ITE (Commercial) applications and offers an efficiency of 85%. It features a single output and a current rating of 1.1A. The physical dimensions are 70.0mm in length, 48.0mm in width, and 23.5mm in height.
The AMS3G240-25H3 is mounted via Through Hole and comes in a 9-DIP Module package with 6 leads. It operates within a temperature range of -40°C to 70°C, with derating applied at higher temperatures. The unit is RoHS3 Compliant and has an MSL rating of 1 Unlimited.
The output voltage is 24V.
The power rating is 25W.
The input voltage range is 85 ~ 305 VAC or 100 ~ 430 VDC.
It is mounted Through Hole.
The operating temperature range is -40°C to 70°C (With Derating).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
