| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Type | |
| Voltage | |
| Width |

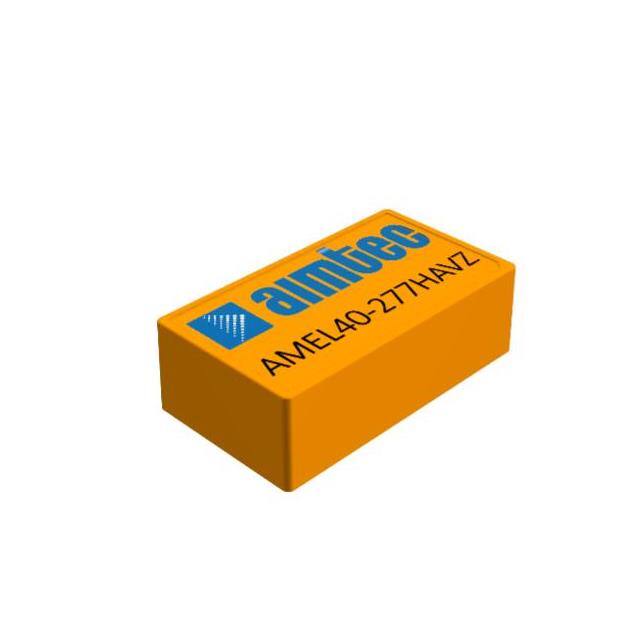

The Aimtec AMEL40-5S277HAVZ is an enclosed AC/DC converter designed for industrial applications. It delivers a stable 5V output with a maximum current of 7A, providing a total power of 35W. The converter boasts an efficiency of 86% and operates within a temperature range of -40°C to 85°C.
This unit is designed for through-hole mounting and comes in a 4-DIP module package. Its dimensions are 69.6mm in length, 39.1mm in width, and 24.1mm in height. The AMEL40-5S277HAVZ is RoHS3 compliant, has an MSL of 1, and is REACH unaffected, making it suitable for various industrial electronic designs.
Key electrical specifications include a single output, 86% efficiency, and a 5V output voltage. The mechanical specifications detail its size and mounting type, ensuring compatibility with standard PCB layouts. This converter is a reliable choice for power supply needs in demanding environments.
5V.
4-DIP Module, Through Hole mounting.
-40°C to 85°C.
86%.
1 output.
69.6mm x 39.1mm x 24.1mm.
