| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

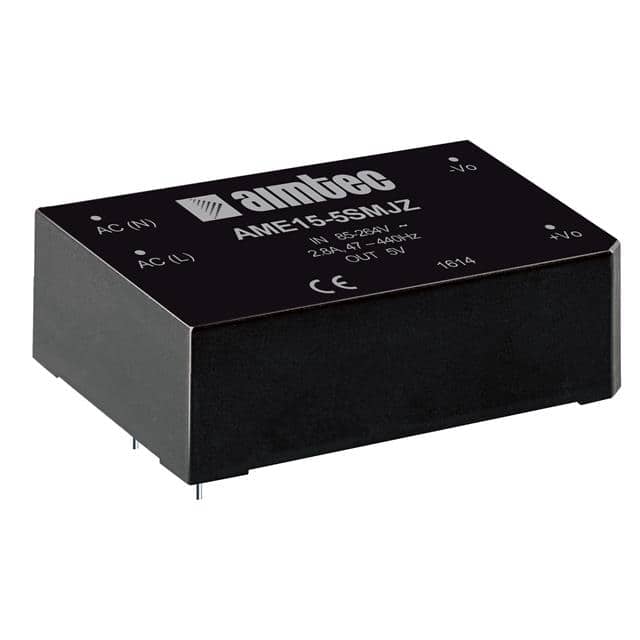

The Aimtec AME15-5SMJZ is a 15-watt AC/DC converter designed for board mount applications. It provides a single 5V output with a maximum current of 2.8A. The converter accepts a wide universal input voltage range of 85-264 VAC (47-440 Hz) or 120-370 VDC, making it suitable for global use.
Key electrical specifications include a typical efficiency of 78% at 230VAC, ±2% voltage accuracy, and ±1% load regulation. It offers robust protection features such as over-current, over-voltage, and short-circuit protection. The operating temperature range is -40°C to +70°C.
Designed with medical applications in mind, it meets 2xMOPP compliance and features 4000 VAC isolation. The unit is housed in a compact 4-DIP module package with through-hole mounting. Its dimensions are 62.0mm x 45.0mm x 22.50mm, and it weighs 85g. The MTBF is rated at over 300,000 hours.
The AME15-5SMJZ provides a single 5V output with a maximum current of 2.8A.
The input voltage range is 85-264 VAC (47-440 Hz) or 120-370 VDC.
The operating temperature range is -40°C to +70°C with derating.
It is housed in a 4-DIP through-hole module.
Yes, it features continuous short circuit protection with auto recovery.
The input-to-output isolation voltage is 4000 VAC.
Yes, it is 2xMOPP compliant for medical applications.
