| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

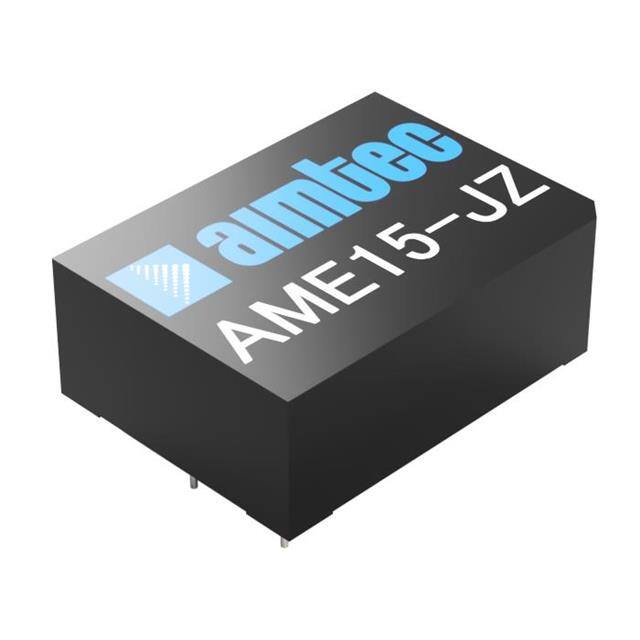

The Aimtec AME15-24SJZ is a 15 Watt AC/DC converter designed for reliable power conversion in various applications. It features a wide input voltage range of 85-305 VAC, accommodating diverse power sources. The converter provides a stable 24V output at a maximum current of 625mA, delivering up to 15W of power.
With a typical efficiency of 84%, the AME15-24SJZ minimizes energy loss. It operates within an ambient temperature range of -40°C to 70°C, with derating applied. The unit is built with I/O isolation of 3000VAC and input-to-ground isolation of 2000VAC, ensuring safety and reliability.
Designed for Through Hole mounting, this converter comes in a 4-DIP Module package. Key features include over-current protection, over-voltage protection, and short-circuit protection with auto-recovery. Its applications include ITE (Commercial) equipment, and it holds CE and cURus approval agency certifications.
The input voltage range is 85-305 VAC or 100-430 VDC.
It provides a 24V output at up to 0.625A, with a maximum output power of 15W.
The operating temperature range is -40°C to 70°C with derating.
It is available in a 4-DIP Module with through-hole mounting.
It includes over current protection (≥110% of Iout), over voltage protection (Zener diode clamp), and short circuit protection with auto recovery.
Input-to-output isolation is rated at 3000VAC for 60 seconds.
Typical efficiency is 84%.
