| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

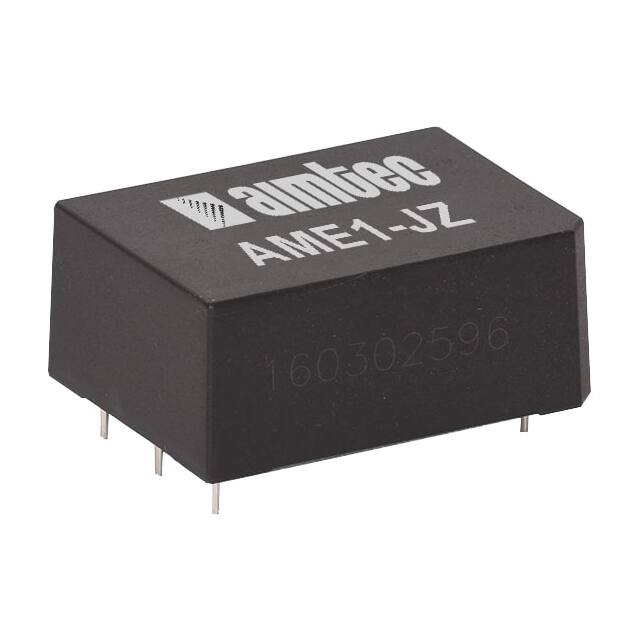

This Aimtec AME1-24SJZ is an enclosed AC/DC converter delivering 1W of power with a 24V output voltage. It accepts a broad input voltage range from 120 to 305 VAC and provides an output current of 42mA. The converter features an efficiency of 75% and operates within a temperature range of -25°C to 70°C with derating.
Designed for ITE (Commercial) applications, this unit is suitable for various electronic systems. It is packaged in a 4-DIP module and utilizes Through Hole mounting for secure integration into circuit boards. The dimensions are 33.7mm in length, 22.2mm in width, and 18.0mm in height.
Compliance certifications include CE, cULus, and cURus. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited. REACH status is unaffected.
The output voltage is 24V.
The input voltage range is 120 to 305 VAC.
The power rating is 1 W.
The operating temperature range is -25°C to 70°C, with derating.
It is mounted using the Through Hole method.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
