| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

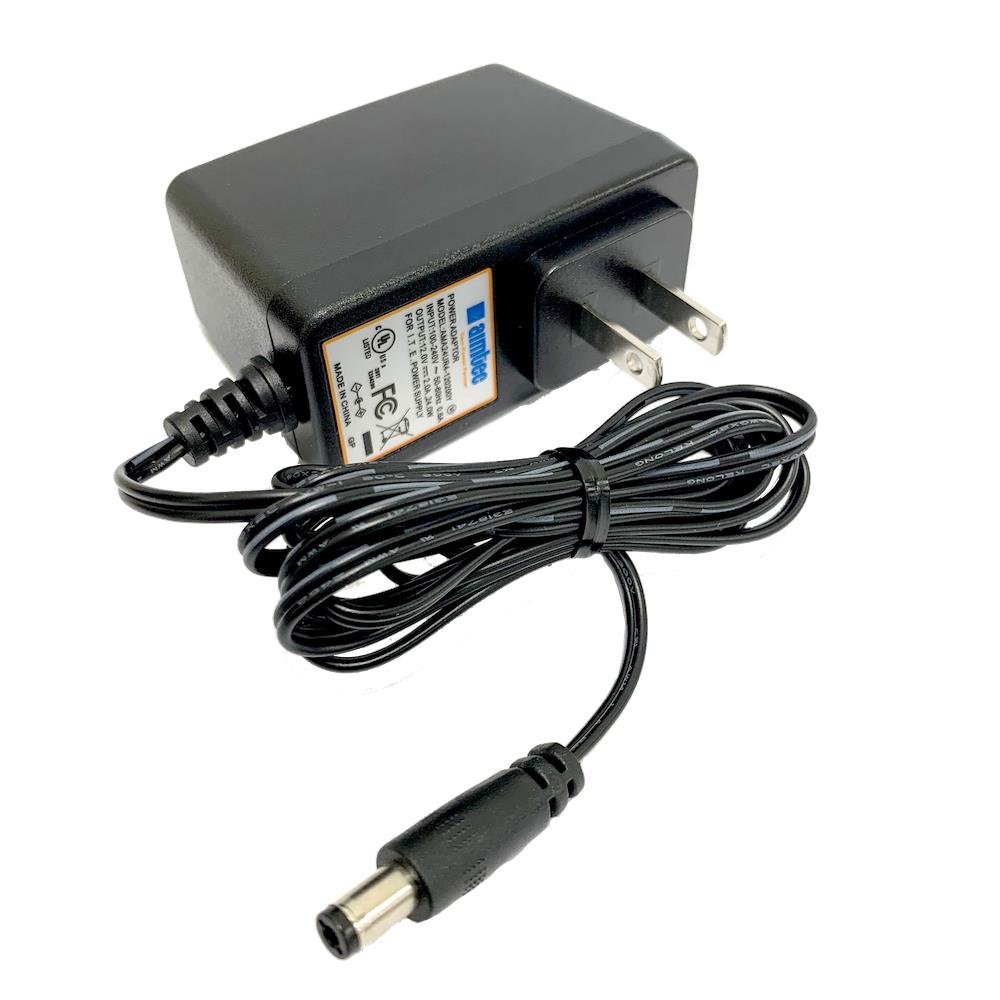

This Aimtec AMA24EU1-050300Y is an AC/DC external wall mount adapter, classified as Class II. It delivers a stable 5V output with a maximum current of 3A, providing a total power of 15W. The adapter meets Level VI efficiency standards, ensuring energy savings.
Designed for commercial ITE applications, it operates within a voltage input range of 90 to 264 VAC and utilizes a fixed blade input connector suitable for European regions. The output is delivered via a USB Micro connector. Its compact dimensions are 72.0mm x 34.0mm x 88.0mm, and it weighs 130.00g. The operating temperature range is from 0°C to 40°C.
Compliance is indicated by CE and UL approvals, and it adheres to standards such as 60950-1 and 62368-1. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 (Unlimited).
The adapter provides a 5V output at a maximum current of 3A.
The adapter has a power rating of 15W.
The input voltage range is 90 to 264 VAC.
The adapter meets Efficiency Level VI.
The operating temperature range is 0°C to 40°C.
It uses a USB Micro output connector.
The RoHS status is RoHS3 Compliant.
