| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,875 pcs
|
2875 pcs | On Request | 1 | 1 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Connectors | |
| Cable Type | |
| Color | |
| Connector Insulator Color | |
| Connector Type | |
| Fastening Type | |
| Gender | |
| Hi-Pot Test Voltage | |
| Jacket Material | |
| Length | |
| Mating Cycles | |
| Number of Positions | |
| Operating Temperature Range | |
| Pin Assignment | |
| Shielding | |
| Usage | |
| Wire Gauge |

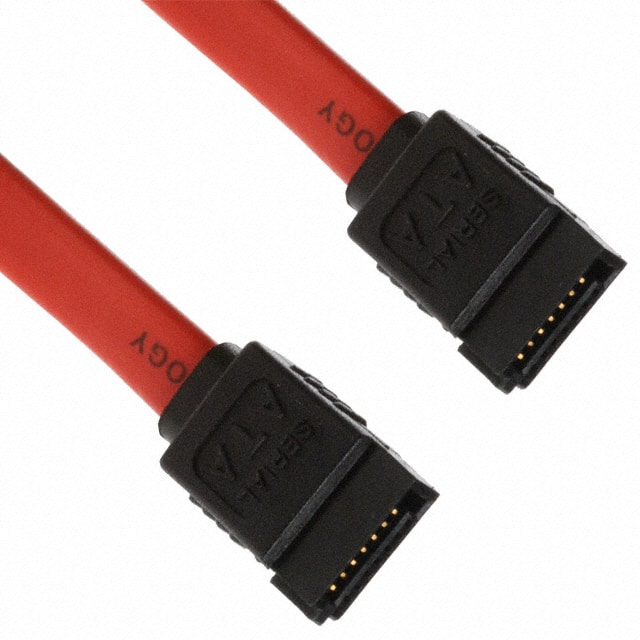

The AK-SATA-100 is a 1-meter Serial ATA (SATA) connection cable from Assmann WSW Components. It features 7-pin female receptacles on both ends, designed for external SATA connections. The cable is shielded and uses a flat cable construction with a red PVC jacket. Connectors are black insulator crimp-type with push-pull fastening. The cable is rated for 50 mating cycles and has a Hi-Pot test voltage of 300V DC. Pin assignment follows SATA standard with pins 1-3 as GND and pins 4-7 as signal.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
| 10+ | $2.04 | $2.04 |
| 30+ | $1.89 | $1.89 |
| 50+ | $1.82 | $1.82 |
| 100+ | $1.73 | $1.73 |
| 250+ | $1.63 | $1.63 |
| 500+ | $1.55 | $1.55 |
| 1,000+ | $1.47 | $1.47 |
| 2,500+ | $1.38 | $1.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The cable length is 1.00 meter (3.28 feet).
It uses 7-pin female SATA receptacles on both ends (receptacle to receptacle).
Yes, the cable is shielded.
Pins 1, 2, and 3 are GND; pins 4, 5, 6, and 7 are signal pins per SATA standard.
The operating temperature range is 0°C to 70°C (inferred).
The datasheet indicates RoHS rev00, but compliance is unverified.
