| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Duration | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

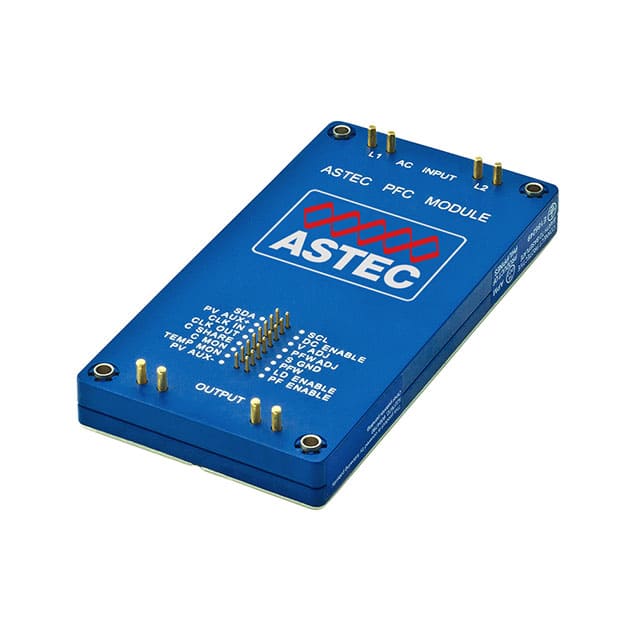

The Artesyn Embedded Power AIT00ZPFC-01NL is a three-quarter-brick AC DC converter module designed for ITE (Commercial) applications. It accepts a wide input voltage range of 100 to 122 Vac and provides a stable 393 Vdc output voltage.
This module delivers up to 150 Watts of total power with a high conversion efficiency of up to 92%. It features a unity power factor and supports AC supply frequencies from 50 Hz to 800 Hz. The operating temperature range is -20°C to +100°C (baseplate temperature).
Designed for through-hole mounting, the AIT00ZPFC-01NL has dimensions of 88.9mm x 61.0mm x 14.0mm. It includes safety agency approvals from cUL, TUV, and UL, and complies with IEC1000-3-2 standards.
Key electrical specifications include an input surge rating of 170 Vac for 500 ms, overvoltage protection at 430 V max, and I/O isolation of 2700 Vdc. The module also features negative TTL compatible PFC enable and voltage adjustment capabilities.
The input voltage range is 100 to 122 Vac.
The typical output voltage is 393 Vdc.
The operating temperature is -20°C to +100°C (baseplate temperature).
The RoHS status is RoHS3 Compliant.
