Mfr Part #:

AHVACN5KV100UABT

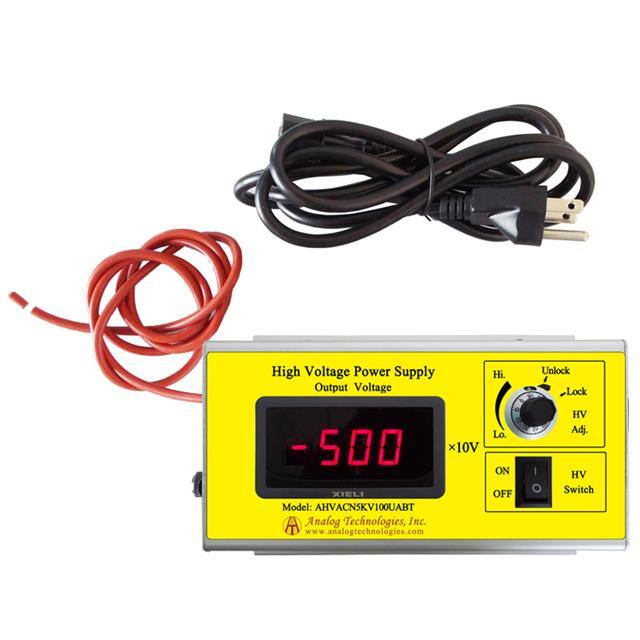

AC-DC high voltage non-isolated converter from Analog Technologies. Input voltage range 90-230 V AC.

Stock on Request

AHVACN5KV100UABT Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	AC DC Converters
Manufacturer Name	Analog Technologies
SVHC Present	Not Present

View Similar Products (0)

AHVACN5KV100UABT Description

Short technical summary and product information.

The AHVACN5KV100UABT is an AC-DC high voltage non-isolated converter manufactured by Analog Technologies. It accepts an AC input voltage range of 90-230 V AC, making it suitable for worldwide line voltage applications.

This converter is designed for non-isolated topologies where direct output referenced to input is acceptable. The wide input range accommodates varying mains voltages without external configuration.

Typical applications include power supplies for industrial controls, instrumentation, and embedded systems requiring a high voltage non-isolated conversion stage.

AHVACN5KV100UABT Quick Information

Product Type: AC DC Converter

Canonical Name: AHVACN5KV100UABT AC-DC High Voltage Non-Isolated Converter

Subcategory: High Voltage Non-Isolated

AHVACN5KV100UABT Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AHVACN5KV100UABT Features

High precision output voltage regulation.
High efficiency AC-DC conversion.
Overcurrent and short circuit protection.
Digital display for output voltage.
Linear modulation of output voltage.

AHVACN5KV100UABT Applications

Used in industrial measurement and control systems.
Ideal for X-ray machine power supplies.
Suitable for vacuum and plasma processing.
Applied in semiconductor fabrication equipment.
Used in medical diagnostic and therapeutic systems.

AHVACN5KV100UABT FAQs

1 frequently asked questions generated from this part’s specifications.

What is the AC input voltage range of the AHVACN5KV100UABT?

The AC input voltage range is 90-230 V AC.
