| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
216 pcs
|
216 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Conflict Minerals | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Isolation Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

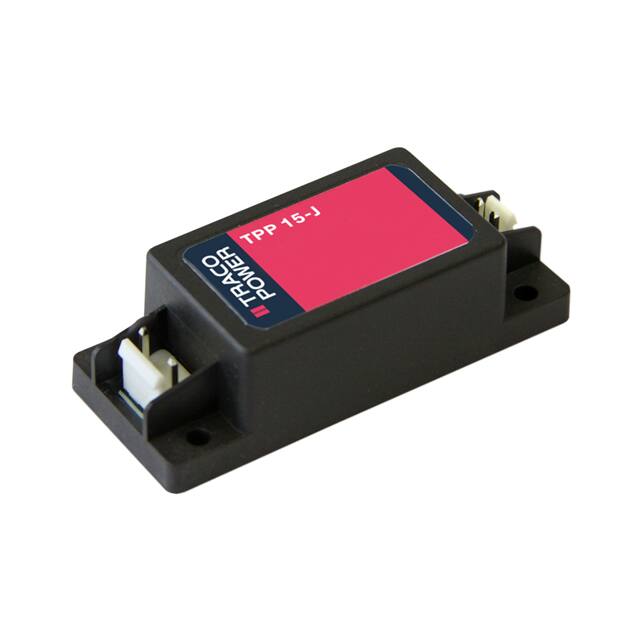

The Traco Power TPP 15-105-J is a 15-watt AC/DC converter from the TPP 15-J series, providing a single regulated 5 VDC output at 3 A. It accepts a universal input of 85 to 264 VAC or 120 to 370 VDC, with a frequency range of 47 to 440 Hz. The converter achieves up to 86% typical efficiency and features a no-load power consumption of less than 100 mW, meeting ErP directive requirements.
Designed for medical, household appliance, and ITE (commercial) applications, the TPP 15-105-J is certified to IEC/EN/ES 60601-1 Edition 3.2 for 2 x MOPP and has a low leakage current below 100 µA, making it suitable for BF (body floating) applications. EMC compliance is to IEC 60601-1-2 4th edition. The unit is Protection Class II and operates at altitudes up to 5000 m.
The power supply is enclosed in a compact chassis-mount package measuring 71.6 mm x 28.9 mm x 20.9 mm. It operates over a temperature range of -40°C to +85°C with derating. Key protections include an internal fuse T 1.6 A / 250 VAC. The product carries a 5-year warranty.
The TPP 15-105-J provides a single output of 5 VDC at 3 A, with a maximum power of 15 W.
The AC input range is 85 to 264 VAC (full range), and the DC input range is 120 to 370 VDC.
The operating temperature range is -40°C to +85°C with derating above +70°C.
Yes, it is certified to IEC/EN/ES 60601-1 Edition 3.2 for 2 x MOPP and has low leakage current <100 µA, suitable for BF applications.
The typical efficiency is 86%.
The dimensions are 71.6 mm (length) x 28.9 mm (width) x 20.9 mm (height).
The product carries a 5-year warranty.
