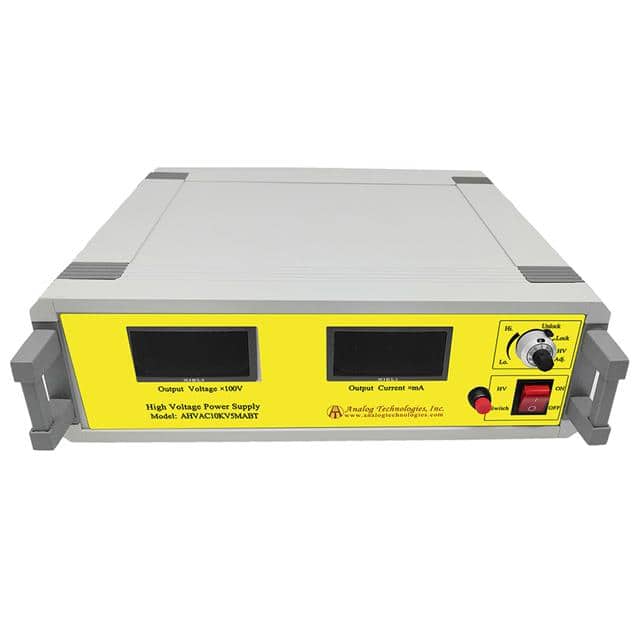

The Analog Technologies AHVAC10KV5MABT is a high-voltage AC-DC converter designed for applications requiring precise high DC voltage output from an AC input. It accepts a wide AC input voltage range of 90 to 230 VAC and delivers a stable output current of 5 mA with an efficiency of 70%.
This converter is built with features such as high precision, high output voltage stability, and linear modulation of output voltage. It also includes overcurrent and short circuit protection, along with a digital display for monitoring the output voltage. The unit is designed for rack mounting and comes in an enclosed package for protection.
Applications for this high voltage power supply include industrial measurement and control, energy spectrum analysis, and various medical equipment such as X-ray machines. It is also suitable for vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research and academic applications.
Safety precautions are critical when operating this high voltage power supply. It must be reliably connected to ground, and users should avoid touching high voltage wires unless the power is off and capacitors are discharged. Operation in humid environments is not recommended.
The input voltage range is 90 to 230 VAC.
The output current is 5 mA.
The efficiency is 70%.
The operating temperature range is -20°C to 55°C.
It supports rack mount.
The dimensions are 350.0mm (Length) x 300.0mm (Width) x 125.0mm (Height).
