| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Type | |
| Voltage | |
| Width |

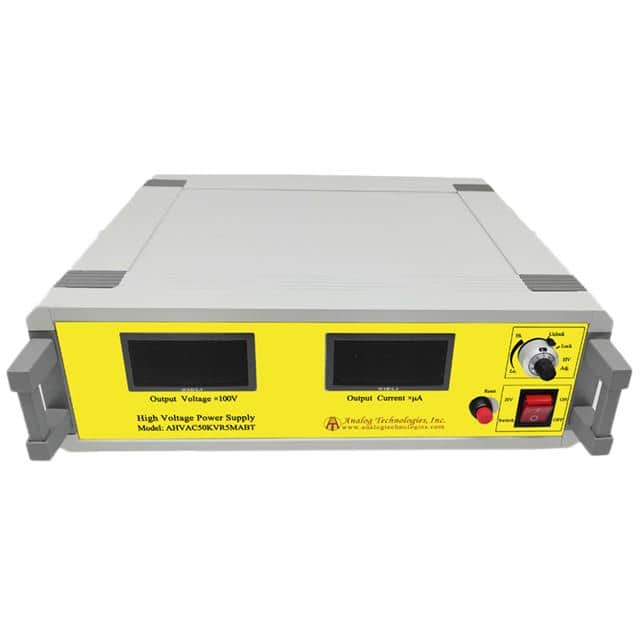

The Analog Technologies AHVAC50KVR5MABT is an enclosed AC-DC high voltage power supply designed for applications requiring AC to high DC voltage conversion. It features high precision, high efficiency (70%), and high output voltage stability with linear modulation of the output voltage. The unit includes overcurrent and short circuit protection, along with a digital display for output voltage.
This power supply accepts an AC input voltage range of 90 to 230 VAC. The output voltage can be adjusted linearly, and the maximum output current is 0.5mA. The operating temperature range is -20°C to 55°C. The physical dimensions are 350.0mm in length, 300.0mm in width, and 125.0mm in height.
Applications for this power supply include industrial measurement and control, energy spectrum analysis, X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research applications. It is suitable for ITE (Commercial) use and features a rack mount type.
Safety precautions are critical when operating this high voltage power supply. It must be connected to ground reliably, and users should avoid touching high voltage wires unless powered off and fully discharged. Allow 5 minutes for internal capacitor discharge after power off. Do not operate in humid environments.
90 to 230 VAC.
50 kV.
0.5 mA.
-20°C to 55°C.
Enclosed, rack mount.
70%.
Yes, it features an adjustable output.
