| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
315,000 pcs
|
315000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Gender | |
| Contact Size | |
| Contact Termination Style | |
| Contact Type | |
| Current Rating (@ Contact Size 12) | |
| Current Rating (@ Contact Size 16) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Insulation Resistance | |
| Mating Cycle Durability | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Orientation | |
| SVHC Present | |
| Seal Diameter | |
| Seal Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Type | |
| Voltage Rating | |
| wire_range (@ Contact Size 12) | |
| wire_range (@ Contact Size 16) |

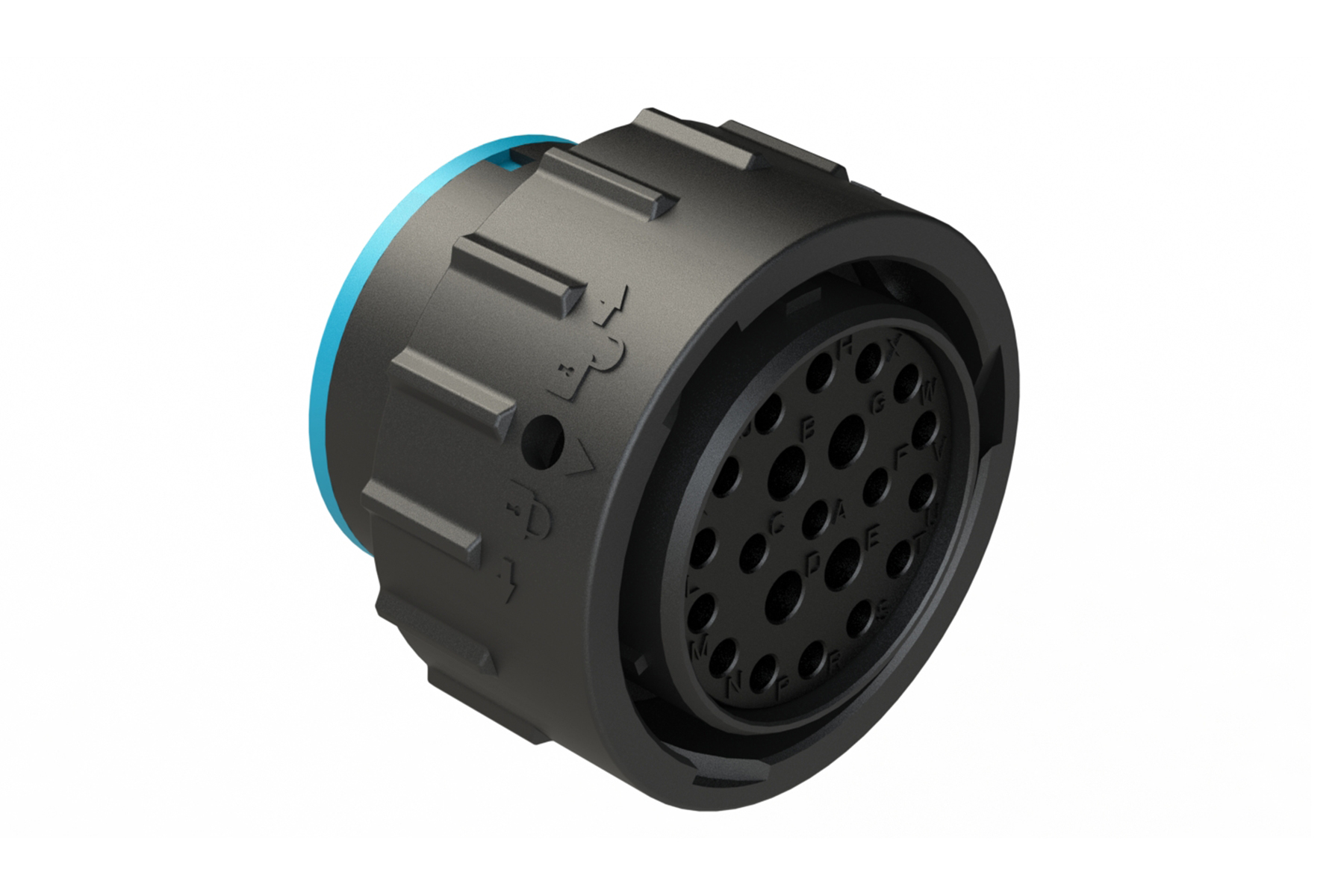

The Amphenol Sine Systems AHDP06-24-21SR-SRA is a 21-position circular connector plug housing from the DuraMate AHDP series. It features a thermoplastic black housing with a bayonet lock fastening system and a keyed orientation for secure mating. The housing is designed for free hanging (in-line) mounting and accepts size 12 (4 positions) and size 16 (17 positions) socket contacts with crimp termination. Wire ranges are 10-14 AWG for size 12 contacts and 14-20 AWG for size 16 contacts. The connector is rated for 250V and carries 25A per size 12 contact and 13A per size 16 contact. It offers IP67 and IP69K ingress protection when mated, and operates from -55°C to +125°C. The seal is made of silicone rubber with a reduced diameter design. The part includes a coupling nut and a smooth ring adapter (SRA).
| Qty | Low | High |
|---|---|---|
| 1+ | $13.08 | $13.08 |
| 10+ | $11.69 | $11.69 |
| 25+ | $10.70 | $10.70 |
| 50+ | $10.14 | $10.14 |
| 100+ | $9.79 | $9.79 |
| 250+ | $9.40 | $9.40 |
| 500+ | $9.15 | $9.15 |
| 1,000+ | $9.08 | $9.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
21 positions.
25A for size 12 contacts and 13A for size 16 contacts.
250V.
Free hanging (in-line).
IP67 and IP69K when mated.
-55°C to +125°C.
24-21.
