| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
472 pcs
|
472 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Ingress Protection | |
| Insulation Resistance | |
| Mating Cycle Durability | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Wire Gauge Range |

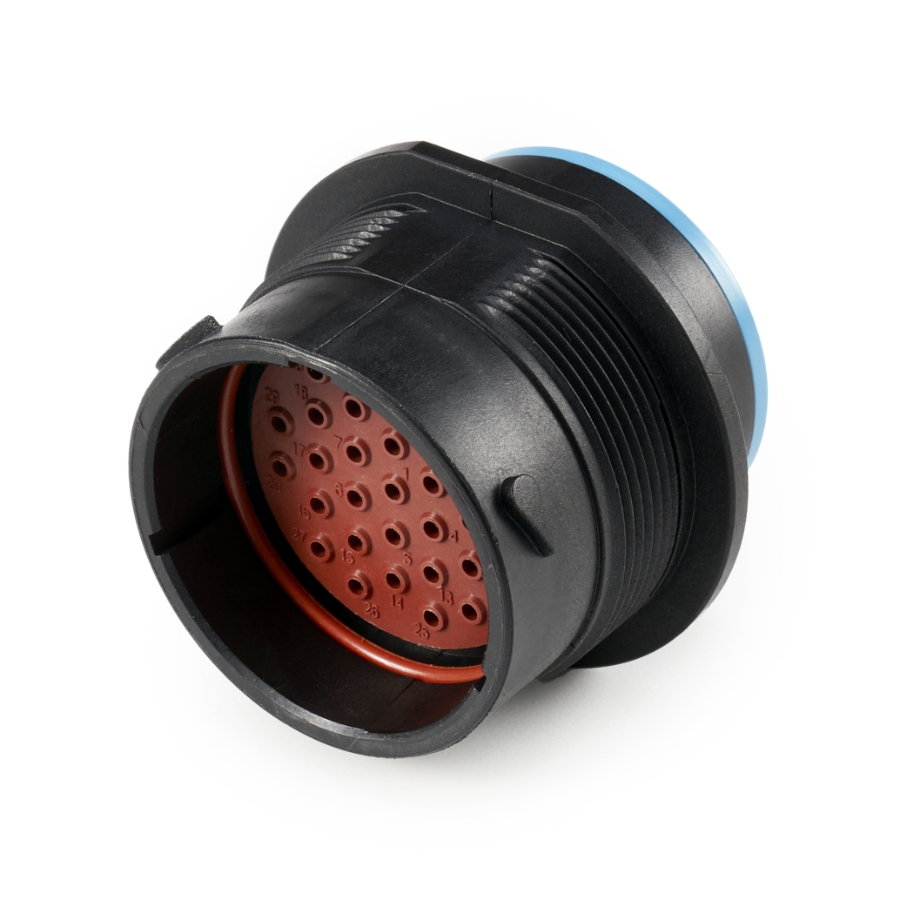

The Amphenol Sine Systems AHDP04-24-31PR-SRA is a 31-position male pin receptacle housing from the DuraMate AHDP series. This housing is designed for panel mount applications using a bulkhead front side nut and features a bayonet locking mechanism for secure mating.
The housing is constructed from a black thermoplastic shell with silicone rubber seals, providing IP67 and IP69K ingress protection when mated. It operates over a temperature range of -55°C to +125°C. The receptacle is supplied with a dust cap and includes a smooth ring adapter (SRA) and a reduced diameter wire seal.
Electrical specifications include a dielectric withstanding voltage of 1500 VAC with less than 2 mA leakage, a minimum insulation resistance of 1000 MΩ at 25°C, and a current rating of 13 A for size 16 contacts with 14-20 AWG wire. The mating part is the AHDP06-24-31S* series (seal type varies).
| Qty | Low | High |
|---|---|---|
| 1+ | $8.44 | $8.44 |
| 10+ | $7.83 | $7.83 |
| 25+ | $7.28 | $7.28 |
| 50+ | $7.10 | $7.10 |
| 100+ | $6.93 | $6.93 |
| 250+ | $6.53 | $6.53 |
| 500+ | $6.39 | $6.39 |
| 1,000+ | $6.13 | $6.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 31 positions.
The operating temperature range is -55°C to +125°C.
IP67/IP69K when mated.
Panel mount with bulkhead front side nut.
Accepts 14-20 AWG wire.
13 A for size 16 contacts with 14-20 AWG wire.
Yes, RoHS compliant.
