| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,400 pcs
|
8400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Housing Color | |
| Ingress Protection | |
| Insulation Resistance | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| SVHC Present | |
| Seal Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Type | |
| current_rating (Nominal @ Contact Size 12, Wire 10-14 AWG) | |
| current_rating (Nominal @ Contact Size 16, Wire 14-20 AWG) | |
| wire_range (@ Contact Size 12) | |
| wire_range (@ Contact Size 16) |

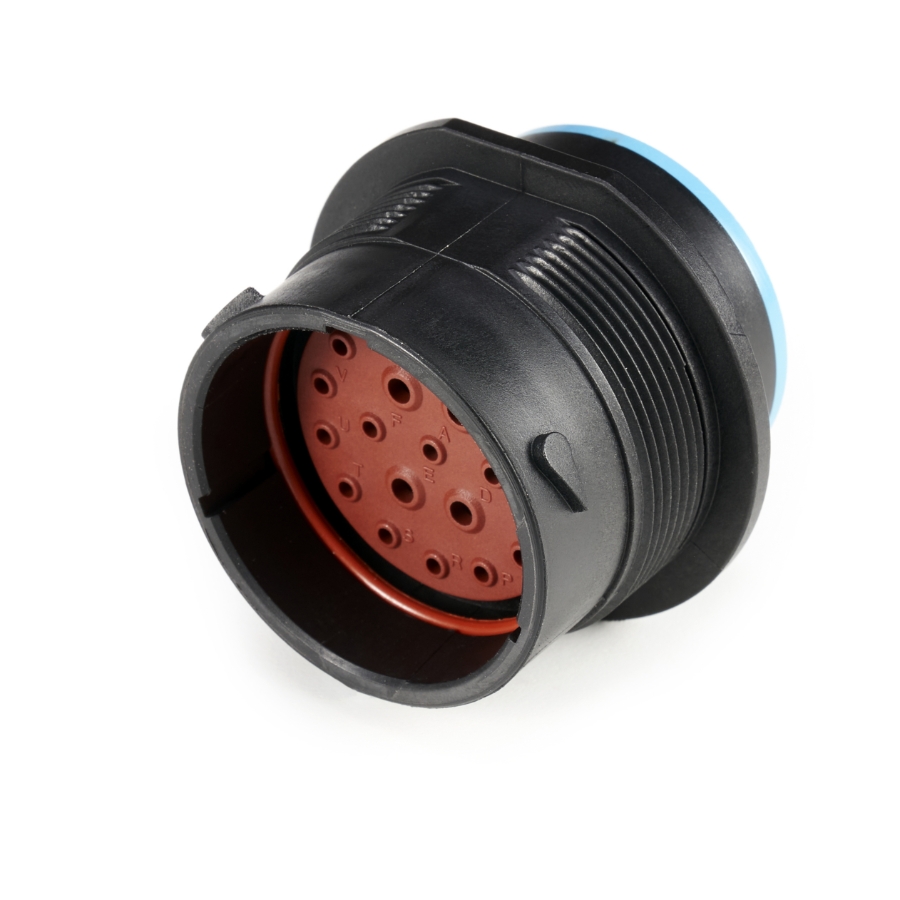

The Amphenol Sine Systems AHDP04-24-21PR-SRA is a 21-position circular connector receptacle housing from the Duramate AHDP series. It features a thermoplastic shell in black with a silicone rubber seal, providing IP67 and IP69K ingress protection when mated. The housing is designed for panel mounting with a bulkhead front side nut and uses a bayonet lock fastening system for secure mating.
This receptacle housing accommodates size 12 (4 positions) and size 16 (17 positions) crimp contacts, supporting wire ranges of 10-14 AWG and 14-20 AWG respectively. It is rated for operating temperatures from -55°C to +125°C and offers a dielectric withstanding voltage of 1500 VAC with less than 2 mA leakage. Insulation resistance is a minimum of 1000 MOhm at 25°C.
The housing is unshielded and keyed for orientation. It is designed for 100 mating cycles and is RoHS compliant. The mating part is the AHDP06-24-21S* female housing.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.55 | $10.55 |
| 10+ | $9.52 | $9.52 |
| 25+ | $8.56 | $8.56 |
| 50+ | $8.26 | $8.26 |
| 100+ | $7.94 | $7.94 |
| 250+ | $7.56 | $7.56 |
| 500+ | $7.41 | $7.41 |
| 1,000+ | $6.79 | $6.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 21 positions.
-55°C to +125°C.
IP67 and IP69K when mated.
Panel mount with bulkhead front side nut.
13 A for size 16 contacts with 14-20 AWG wire.
25 A for size 12 contacts with 10-14 AWG wire.
Yes, it is RoHS compliant.
