AGLN250V5-CSG81I The AGLN250V5-CSG81I is a Field Programmable Gate Array (FPGA) from Microchip Technology featuring 60 I/O pins, 6144 logic elements, and 250,000 gates. It operates from 1.425V to 1.575V and is supplied in an 81-CSP (5x5) surface mount package.
Mfr Part #:

AGLN250V5-CSG81I

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The AGLN250V5-CSG81I is a Field Programmable Gate Array (FPGA) from Microchip Technology featuring 60 I/O pins, 6144 logic elements, and 250,000 gates. It operates from 1.425V to 1.575V and is supplied in an 81-CSP (5x5) surface mount package.
Stock on Request

AGLN250V5-CSG81I Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AGLN250V5-CSG81I Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Industrial Grade
Lead Style
Mounting Type
Number of Gates
Number of I
Number of Logic Elements
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage
View Similar Products (0)

AGLN250V5-CSG81I Description

Short technical summary and product information.

The AGLN250V5-CSG81I is a Field Programmable Gate Array (FPGA) manufactured by Microchip Technology. It is designed for low-power embedded applications requiring moderate logic density. The device features 60 user I/O pins, 6144 logic elements, and 250,000 gates, providing sufficient resources for glue logic, interface bridging, and control functions. It also includes 36,864 bits of total RAM for small data buffering.



The FPGA operates from a supply voltage of 1.425V to 1.575V, making it suitable for low-voltage designs. It is rated for junction temperatures from -40°C to 100°C, enabling use in industrial and harsh environments.

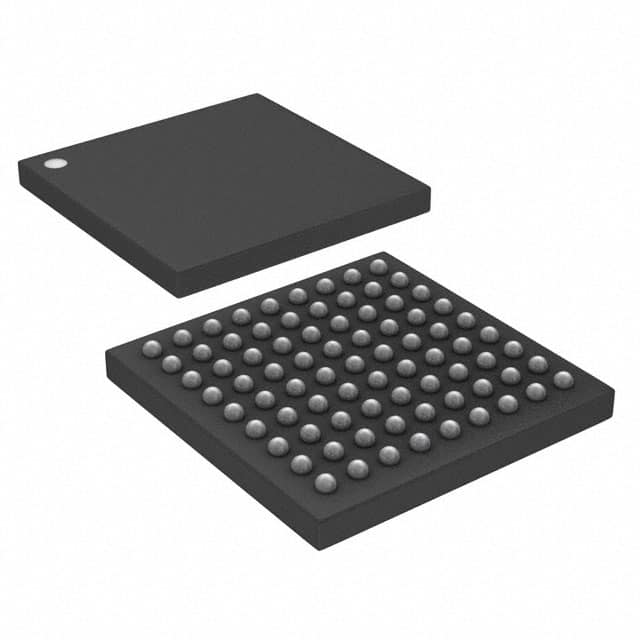

The device is offered in a compact 81-ball CSP (5x5mm) surface mount package (81-WFBGA, CSBGA), which saves board space and is compatible with standard surface mount assembly processes. The small form factor and low power consumption make it ideal for portable and battery-powered electronics.

AGLN250V5-CSG81I Quick Information

Product Type: FPGA (Field Programmable Gate Array)
Series: IGLOO nano
Canonical Name: Microchip Technology AGLN250V5-CSG81I FPGA, 60 I/O, 81-CSP Package
Subcategory: Field Programmable Gate Array

AGLN250V5-CSG81I Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AGLN250V5-CSG81I Features

  • 60 user I/O pins for flexible connectivity.
  • 6144 logic elements for moderate logic density.
  • 250,000 gates for complex logic functions.
  • 36,864 bits of total RAM.
  • Operates from 1.425V to 1.575V supply.

AGLN250V5-CSG81I Applications

  • Ideal for low-power FPGA applications.
  • Suitable for logic integration in embedded systems.
  • Used in industrial and consumer electronics.
  • Can be used in interface bridging and control.

AGLN250V5-CSG81I FAQs

7 frequently asked questions generated from this part’s specifications.
How many logic elements does the AGLN250V5-CSG81I have?

6144 logic elements.

How many I/O pins does this FPGA have?

60 I/O pins.

What is the operating voltage range?

1.425V to 1.575V.

What package is the AGLN250V5-CSG81I offered in?

81-CSP (5x5) surface mount package (81-WFBGA, CSBGA).

How many gates does it support?

250,000 gates.

What is the total RAM bit capacity?

36,864 bits.

What is the operating temperature range?

-40°C to 100°C (junction temperature).
