| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Range | |
| Insulation Resistance | |
| Isolation Voltage | |
| Length | |
| Line Regulation | |
| MTBF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Humidity | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Ripple & Noise | |
| Short circuit protection | |
| Storage Temperature | |
| Switching Frequency | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Tolerance | |
| Width |

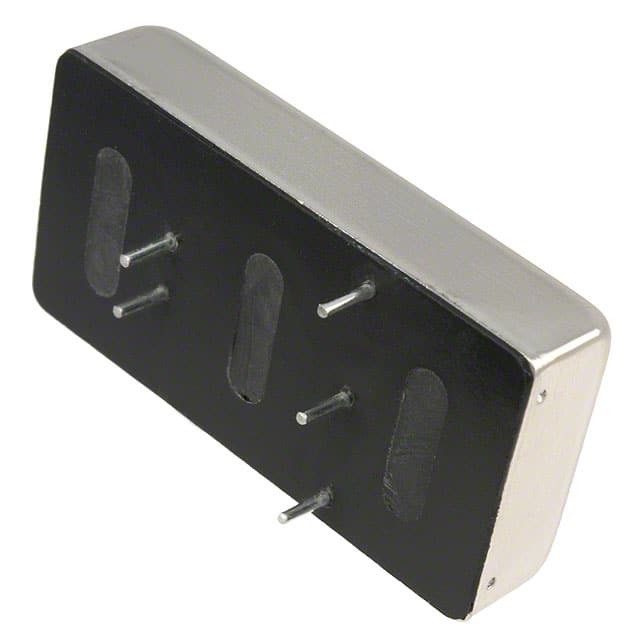

The AEE00CC18-L is a 15W isolated DC-DC converter module from the AEE series by Artesyn Embedded Power. It delivers dual ±15V outputs at 500mA each from a wide 4:1 input voltage range of 9 to 36 Vdc. The converter is housed in a compact 1 x 2 inch (50.8 x 25.4 mm) 5-DIP through-hole package with a height of only 11.3 mm.
Electrical specifications include a typical efficiency of 84%, a switching frequency of 300 kHz, and line regulation of ±0.5%. Output voltage tolerance is ±2.0%, and ripple and noise are rated at 120 mV typical for the 15V output at full load. The module provides 1500 Vdc minimum input-to-output isolation and includes auto-restart short circuit protection.
The operating ambient temperature range is -40°C to +71°C with no derating, and storage temperature range is -55°C to +105°C. The device is rated for commercial ITE applications and is RoHS compliant. Reliability is indicated by an MTBF of greater than 1 million hours.
The input voltage range is 9 to 36 Vdc.
It provides dual outputs: +15V at 500mA and -15V at 500mA, for a total power of 15W.
The package is a 5-DIP Module with through-hole mounting.
The operating ambient temperature range is -40°C to +71°C with no derating.
The input-to-output isolation voltage is 1500 Vdc minimum.
Yes, it features auto-restart short circuit protection.
Yes, the datasheet indicates RoHS compliance (RoHS3 Compliant).
