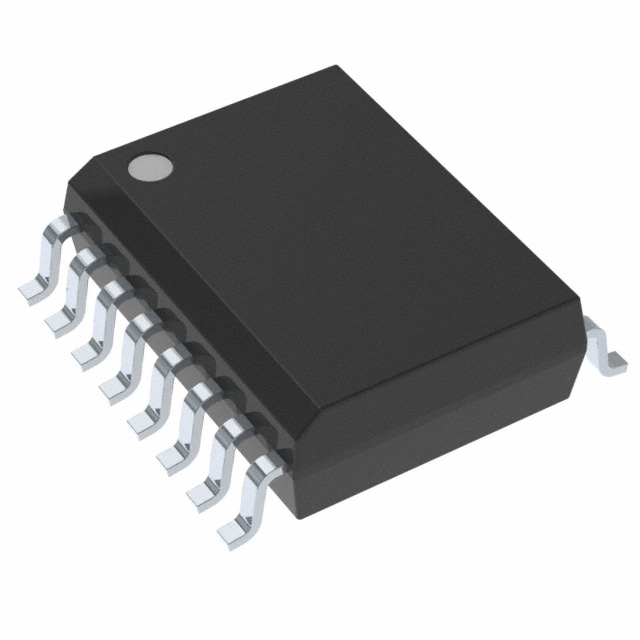

ADUM5400ARWZ The ADUM5400ARWZ from Analog Devices Inc. is a general-purpose digital isolator offering 2500Vrms isolation and a 1Mbps data rate. It comes in a 16-SOIC package.
Mfr Part #:

ADUM5400ARWZ

Available from 1 distributors
Mfr Name: AD
AD
The ADUM5400ARWZ from Analog Devices Inc. is a general-purpose digital isolator offering 2500Vrms isolation and a 1Mbps data rate. It comes in a 16-SOIC package.
✓ Total Stock: 66 pcs
$ Price Range: $3.45

ADUM5400ARWZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADUM5400ARWZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Data Rate
Mounting Type
Number of Channels
Operating Temperature
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Type
Voltage Supply
View Similar Products (0)

ADUM5400ARWZ Description

Short technical summary and product information.

The ADUM5400ARWZ is a general-purpose digital isolator manufactured by Analog Devices Inc. This component utilizes magnetic coupling technology to provide robust isolation, rated at 2500Vrms. It supports a data rate of 1Mbps and features a high common mode transient immunity of 25kV/µs, making it suitable for demanding environments.



The isolator operates within a supply voltage range of 4.5V to 5.5V and has an operating temperature range of -40°C to 105°C. It is designed with 4 unidirectional channels and provides isolated power. The device is housed in a 16-SOIC package with a surface mount type, measuring 7.50mm in width.



Key electrical characteristics include a maximum propagation delay of 100ns and a maximum pulse width distortion of 40ns. Typical rise and fall times are 2.5ns. The ADUM5400ARWZ is designed for applications requiring reliable signal isolation in various industrial and communication systems.

ADUM5400ARWZ Quick Information

Product Type: Digital Isolator
Series: IsoPower®, iCoupler®
Canonical Name: ADUM5400ARWZ Digital Isolator
Subcategory: Digital Isolators

ADUM5400ARWZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADUM5400ARWZ Estimated Pricing

Qty Low High
1+ $3.45 $3.45

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADUM5400ARWZ Features

  • 2500Vrms isolation voltage rating.
  • 1Mbps maximum data transfer rate.
  • High 25kV/µs common mode transient immunity.
  • 4-channel unidirectional signal isolation.
  • Surface mount 16-SOIC package.

ADUM5400ARWZ Applications

  • Ideal for industrial control systems.
  • Suitable for power supply monitoring.
  • Used in communication interfaces.
  • Applicable in medical equipment.
  • Robust for noisy environments.

ADUM5400ARWZ FAQs

4 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the ADUM5400ARWZ?

The isolation voltage is 2500Vrms.

What is the maximum data rate for this digital isolator?

The maximum data rate is 1Mbps.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What type of package is the ADUM5400ARWZ in?

It is supplied in a 16-SOIC package suitable for surface mounting.
