| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
775 pcs
|
775 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Channel Type | |
| Data Rate | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Technology | |
| Type | |
| Voltage Supply |

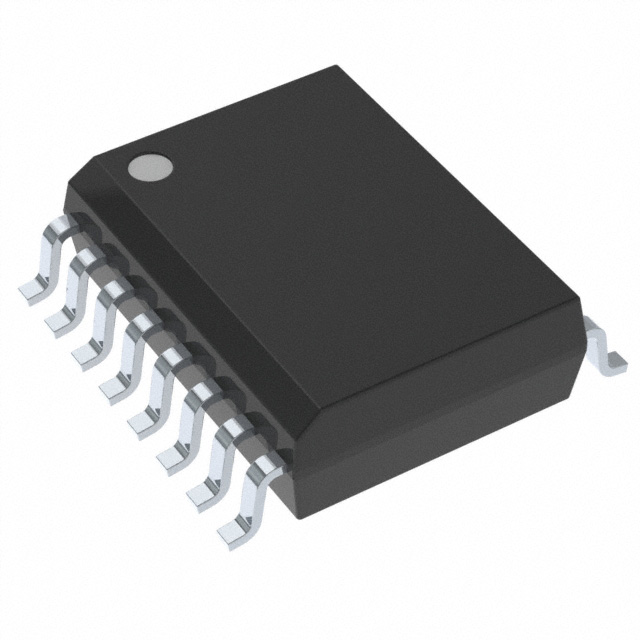

The Analog Devices Inc. ADuM2402CRWZ is a high-performance digital isolator designed for general-purpose applications. It provides robust isolation of 5000Vrms, ensuring signal integrity and protection in demanding environments.
Key electrical specifications include a maximum data rate of 90Mbps and a wide operating supply voltage range of 2.7V to 5.5V. The isolator offers a common mode transient immunity of 25kV/µs, crucial for noisy industrial settings. Propagation delay is a maximum of 32ns, with a pulse width distortion of only 2ns, and typical rise/fall times of 2.5ns.
This device features 4 channels with a unidirectional data flow, configured as 2 channels on side 1 and 2 channels on side 2. It operates reliably across a temperature range of -40°C to 105°C.
The ADuM2402CRWZ is packaged in a 16-SOIC (0.295" | 7.50mm Width) format, designed for surface mounting. Its magnetic coupling technology ensures efficient and reliable signal isolation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADuM2402CRWZ provides 5000Vrms of isolation.
The maximum data rate for the ADuM2402CRWZ is 90Mbps.
The ADuM2402CRWZ operates within a voltage range of 2.7V to 5.5V.
The operating temperature range for the ADuM2402CRWZ is -40°C to 105°C.
The ADuM2402CRWZ has 4 channels.
The ADuM2402CRWZ is available in a 16-SOIC package.
