| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,400 pcs
|
3400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Data Rate | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Propagation Delay | |
| Supply Voltage | |
| Technology |

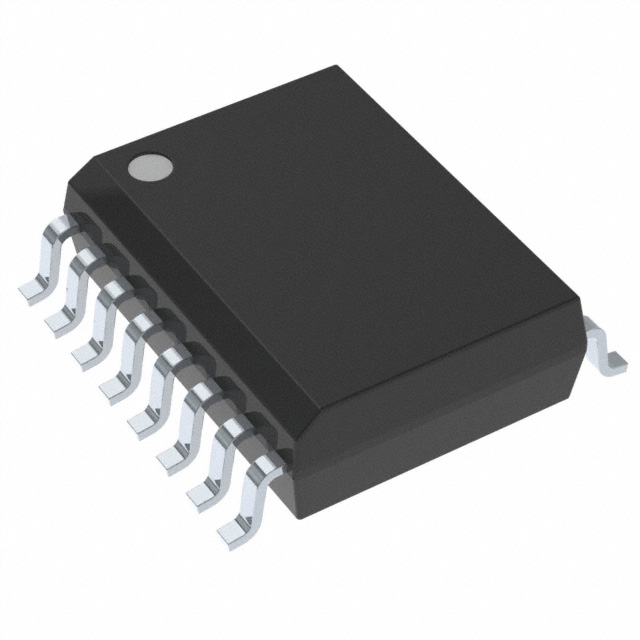

The ADUM1400ARWZ is a quad-channel digital isolator based on Analog Devices' iCoupler® technology. It provides robust isolation with a 2500Vrms rating and high common-mode transient immunity of 25kV/µs.
This isolator supports a data rate of up to 1 Mbps and operates with a supply voltage range of 2.7V to 5.5V. It is designed for high-temperature operation, up to 105°C, making it suitable for demanding environments.
The device features a 16-SOIC wide body package and is designed for surface mounting. Its unidirectional channel type and magnetic coupling technology offer reliable isolation for various applications.
Key specifications include a maximum propagation delay of 100ns and a pulse width distortion of 40ns. The typical rise and fall times are 2.5ns.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 2500 V rms for 1 minute per UL 1577.
The maximum data rate is 1 Mbps.
The operating temperature range is -40°C to 105°C.
It is available in a 16-SOIC wide body package for surface mounting.
No, the channel type is unidirectional.
