| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

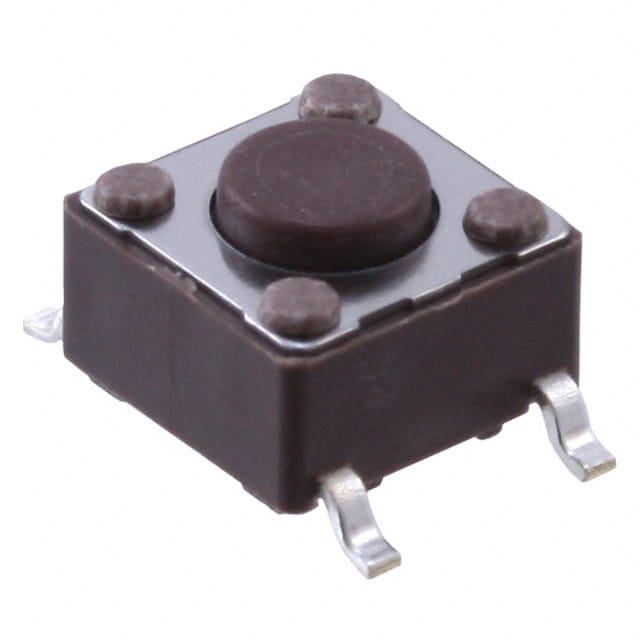

This APEM Inc. ADTSM61NVTR is a tactile switch with a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration. It is rated for 0.05A at 12VDC and features tactile feedback. The switch is designed for surface mounting with a gull wing termination style.
Key mechanical specifications include an actuator height of 4.30mm and an outline of 6.20mm x 6.20mm. The operating force required is 160gf. This non-illuminated switch operates within a temperature range of -25°C to 70°C. The switch function is Off-Mom, meaning it is off when not pressed and momentarily on when pressed.
Compliance information indicates RoHS3 compliance and an MSL of 1. REACH status is unaffected. The part is suitable for various electronic applications requiring a reliable tactile switching function.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADTSM61NVTR switch has a SPST-NO (Single Pole Single Throw Normally Open) circuit.
The contact rating for the ADTSM61NVTR switch is 0.05A at 12VDC.
The operating temperature range for the ADTSM61NVTR is -25°C to 70°C.
The ADTSM61NVTR switch is designed for surface mounting.
