| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Approval Agency | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Frequency | |
| Frequency Range | |
| Impedance | |
| Material | |
| Mounting Type | |
| Style | |
| VSWR (Minimum @ 20 - 26.5 GHz) | |
| VSWR (Minimum @ DC - 20 GHz) | |
| VSWR (Typical @ 26.5 - 30 GHz) |

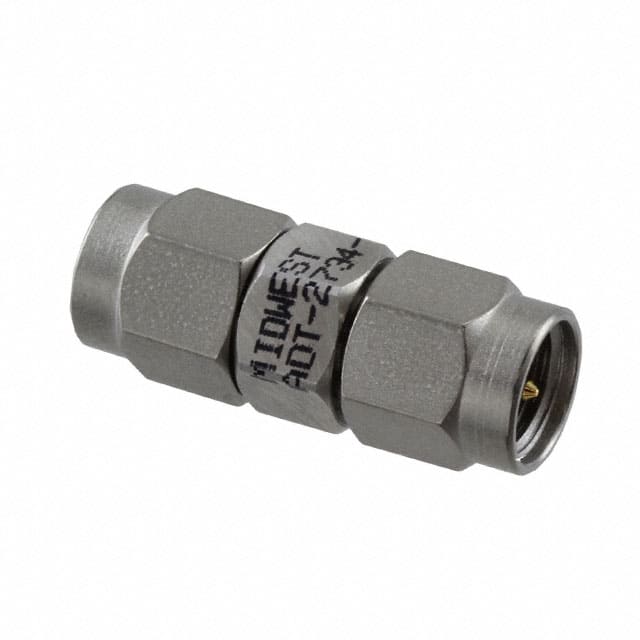

The Cinch ADT-2734-MM-3MM-02 is a precision in-series 3.5mm male to male coaxial adapter designed for high-frequency applications up to 30 GHz. It features rugged stainless steel construction with gold-plated center contacts for reliable signal integrity. The adapter provides low VSWR performance: 1.10:1 minimum from DC to 20 GHz, 1.15:1 minimum from 20 to 26.5 GHz, and 1.20:1 typical from 26.5 to 30 GHz. It is 100% swept frequency tested and meets MIL-C-39012 interface standards.
This free-hanging (in-line) adapter uses threaded coupling on both ends for secure connections. It is suitable for high-end commercial, laboratory, test and measurement, calibration, and military applications. The compact physical package minimizes signal path length while maintaining consistent electrical performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $121.72 | $121.72 |
| 10+ | $103.47 | $103.47 |
| 25+ | $97.00 | $97.00 |
| 50+ | $92.38 | $92.38 |
| 100+ | $87.97 | $87.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
DC to 30 GHz.
1.10:1 minimum from DC to 20 GHz, 1.15:1 minimum from 20 to 26.5 GHz, and 1.20:1 typical from 26.5 to 30 GHz.
3.5mm male plug to 3.5mm male plug with threaded coupling.
Stainless steel.
RoHS3 compliant (unverified).
Free hanging (in-line).
