| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Frequency | |
| Halogen Free | |
| Impedance | |
| Material | |
| Mounting Type | |
| SVHC Present | |
| Style | |
| Termination Style | |
| VSWR (Maximum @ 20 - 26.5 GHz) | |
| VSWR (Maximum @ DC - 20 GHz) | |
| VSWR (Typical @ 26.5 - 30 GHz) |

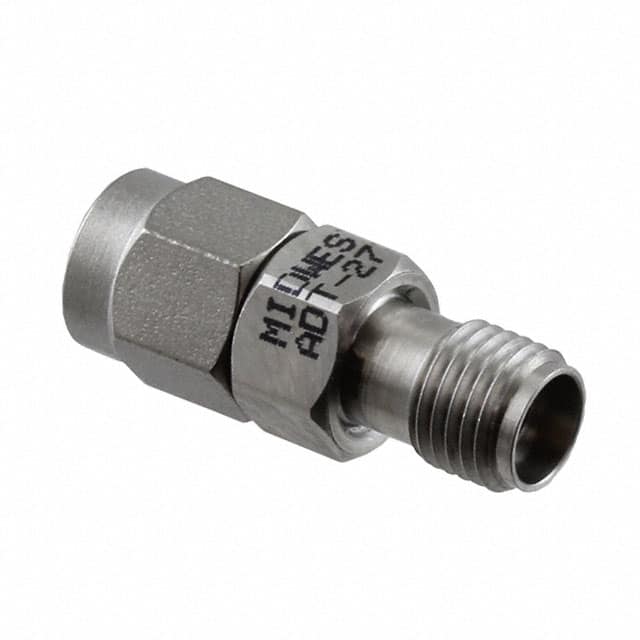

The Cinch ADT-2733-MF-3MM-02 is a high-performance 3.5mm in-series coaxial adapter designed to convert a female jack (socket) to a male plug (pin) within the same 3.5mm series. It features a straight, free-hanging (in-line) body style and threaded fastening on both ends for secure connections.
Electrical performance includes 50 Ohm impedance across the full DC to 30 GHz operating range. Maximum VSWR is rated at 1.10:1 from DC to 20 GHz, 1.15:1 from 20 to 26.5 GHz, and a typical 1.20:1 from 26.5 to 30 GHz. The center contact is gold-plated, and the body is constructed from rugged stainless steel.
This adapter is suitable for high-end commercial, laboratory test and measurement, calibration, and military applications. It is 100% swept frequency tested and manufactured to MIL-C-39012 interface standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $69.29 | $69.29 |
| 10+ | $66.09 | $66.09 |
| 25+ | $64.12 | $64.12 |
| 50+ | $62.26 | $62.26 |
| 100+ | $60.51 | $60.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a plug-to-jack 3.5mm to 3.5mm in-series adapter, converting a female 3.5mm jack to a male 3.5mm plug.
The impedance is 50 Ohm and the maximum frequency is 26.5 GHz, with operation specified up to 30 GHz.
Maximum VSWR is 1.10:1 from DC to 20 GHz, 1.15:1 from 20 to 26.5 GHz, and typical 1.20:1 from 26.5 to 30 GHz.
The body is stainless steel and the center contact has gold plating.
It is listed as RoHS3 compliant, but this status is unverified and should be confirmed from the manufacturer.
