| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Dielectric Material | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Gasket Material | |
| Halogen Free | |
| Housing Material | |
| Impedance | |
| Mounting Type | |
| SVHC Present | |
| Style | |
| vswr_max (Maximum @ 4.0 to 8.0 GHz) | |
| vswr_max (Maximum @ 8.0 to 18.0 GHz) | |
| vswr_max (Maximum @ DC to 4.0 GHz) |

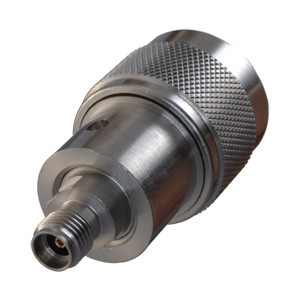

The Cinch ADT-2713-NM-3MF-02 is a between-series coaxial adapter that provides a reliable connection between an N-type male plug and a 3.5mm female jack. It supports 50 Ohm impedance and operates from DC to 18 GHz, making it suitable for high-frequency RF and microwave applications. The adapter features low VSWR: 1.04:1 maximum from DC to 4 GHz, 1.07:1 from 4 to 8 GHz, and 1.12:1 from 8 to 18 GHz.
Constructed with a passivated stainless steel housing and nut, the adapter is built for durability. The center contact is gold-plated beryllium copper, ensuring excellent conductivity and corrosion resistance. The dielectric is PTFE (Teflon), and a silicone rubber gasket provides environmental sealing. The adapter uses a threaded, threaded fastening interface for secure mating.
This straight, free-hanging adapter is ideal for interconnecting test equipment, communication systems, and other RF setups where low loss and consistent performance are required. Compliant with RoHS2 (2011/65/EU), it meets current environmental standards for electronic components.
| Qty | Low | High |
|---|---|---|
| 1+ | $151.93 | $151.93 |
| 10+ | $129.15 | $129.15 |
| 25+ | $121.07 | $121.07 |
| 50+ | $115.30 | $115.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohms.
The frequency range is DC to 18 GHz.
VSWR maximum: 1.04:1 from DC to 4 GHz, 1.07:1 from 4 to 8 GHz, and 1.12:1 from 8 to 18 GHz.
Housing: stainless steel passivated. Center contact: gold-plated beryllium copper. Dielectric: PTFE (Teflon). Gasket: silicone rubber.
Free hanging (in-line) mounting type.
This is an N to 3.5mm adapter.
