The ADSP-21060LCW-160 is a high-performance floating point digital signal processor from Analog Devices' SHARC family. It features a Super Harvard architecture with four independent buses for dual data fetch, instruction fetch, and nonintrusive I/O. The processor core delivers 40 MIPS with a 25 ns instruction rate and single-cycle instruction execution. Peak floating-point performance is 120 MFLOPS, with sustained performance of 80 MFLOPS.
On-chip memory includes 512 kB (4 Mbit) of dual-ported SRAM, enabling efficient data access. The device integrates multiple I/O peripherals including a host interface, link ports, and serial ports, along with dual data address generators supporting modulo and bit-reverse addressing. The processor supports 32-bit single-precision and 40-bit extended-precision IEEE floating-point formats, as well as 32-bit fixed-point data.

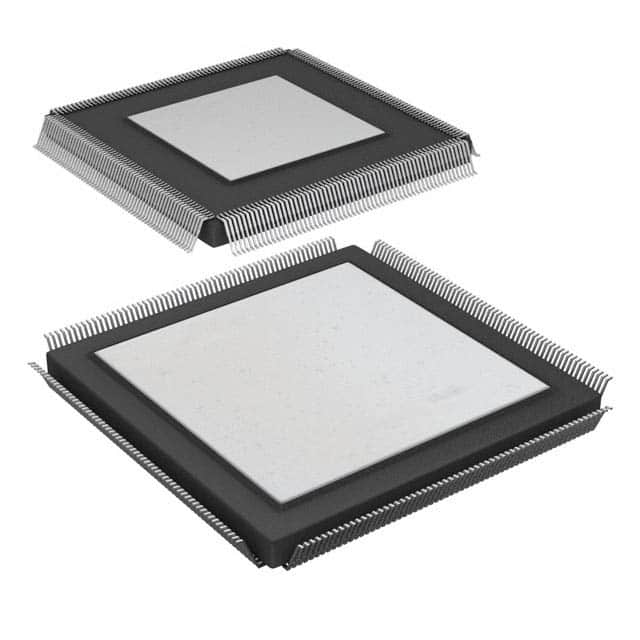

The ADSP-21060LCW-160 is supplied in a 240-lead ceramic quad flat pack (CQFP) with exposed pad, designated as 240-BFCQFP (32x32 mm). It operates from a 3.30 V supply and is rated for case temperatures from -40°C to 100°C. The device is surface mount compatible and includes an IEEE JTAG test access port for on-chip emulation.
The nominal supply voltage is 3.30 V.
The clock rate is 40 MHz (40 MIPS).
The peak performance is 120 MFLOPS, with sustained performance of 80 MFLOPS.
It has 512 kB (4 Mbit) of on-chip dual-ported SRAM.
The operating case temperature range is -40°C to 100°C.
It is available in a 240-BFCQFP exposed pad package (240-CQFP 32x32 mm).
According to the available data, the RoHS status is RoHS3 Compliant, but this has not been verified from an authoritative source.
