| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Conductors | |
| Rated Voltage | |
| Width |

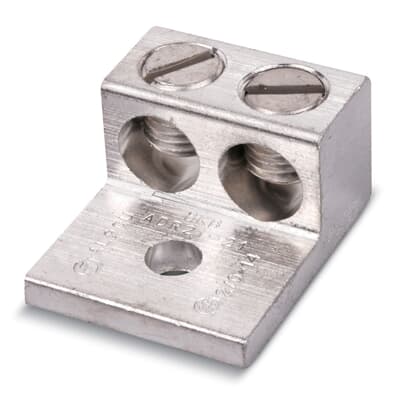

The ADR11-21 is a dual-rated mechanical connector manufactured by ABB Power Electronics under the Blackburn brand. This connector is suitable for use with both copper and aluminum conductors, offering versatility in electrical applications.
Key specifications include a conductor range of 14 AWG to 1/0 AWG, a single mounting hole with a 1/4 inch bolt hole size, and a rated voltage of 600V. The connector has a tin-plated aluminum body, which helps ensure low contact resistance. Its dimensions are approximately 1.47 inches in length, 1.97 inches in width, and 0.78 inches in height.
Installation is designed to be easy, requiring no special tools. The ADR11-21 is a two-conductor, one-hole mount type, facilitating straightforward integration into various electrical systems. Its robust construction and dual-rating make it a reliable choice for demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADR11-21 supports a conductor range from 14 AWG to 1/0 AWG.
The ADR11-21 is rated for 600V.
The ADR11-21 is a two-conductor connector.
The ADR11-21 uses a one-hole mount.
The RoHS status is RoHS3 Compliant.
