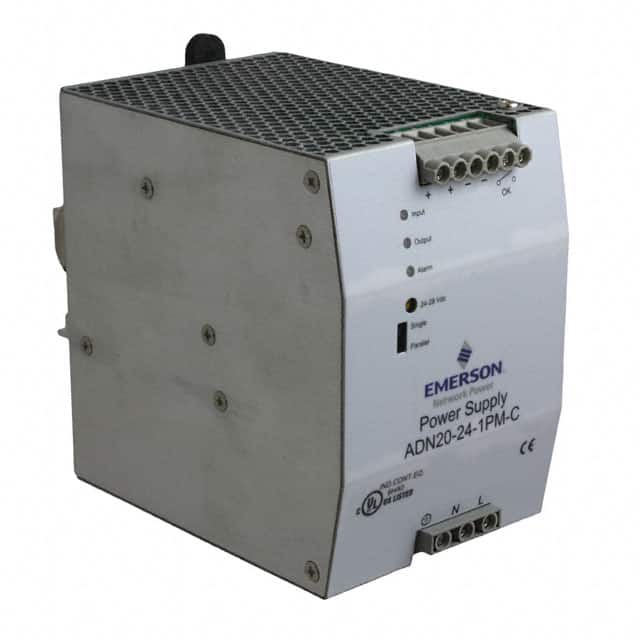

Name: ADN20-24-1PM-C
SKU: ADN20-24-1PM-C

Categories

Category	Industrial, DIN Rail Power Supplies
Manufacturer Name	Artesyn Embedded Power
AC Voltage	85 ~ 264 VAC
Applications	Hazardous Locations, Industrial, ITE (Commercial)
Approval Agency	CE, cULus, UL
Current	20A
DC Voltage	90V
Efficiency	90%
Features	Adjustable Output, IP20, Load Sharing, PFC, Universal Input
Input Type	AC or DC
Number of Outputs	1
Operating Temperature	-25°C ~ 70°C (With Derating)
Power (Watts)	480W
Size	4.96" L x 3.42" W x 4.85" H (126.0mm x 87.0mm x 123.0mm)
Standard Number	Class I Div 2; 508; 60950-1
Voltage	24V

ADN20-24-1PM-C
