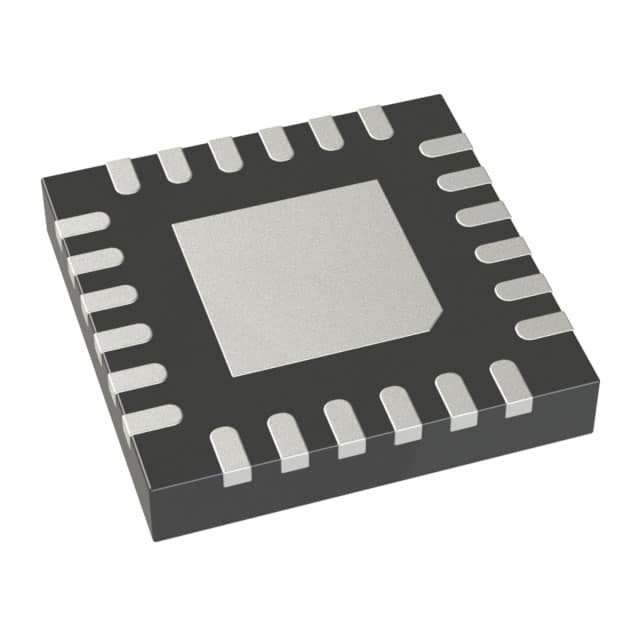

ADL5385ACPZ-R7 The ADL5385ACPZ-R7 is a silicon, monolithic, quadrature modulator from Analog Devices designed for use from 30 MHz to 2200 MHz. It offers excellent phase accuracy and amplitude balance for high-performance modulation.
Mfr Part #:

ADL5385ACPZ-R7

Available from 3 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The ADL5385ACPZ-R7 is a silicon, monolithic, quadrature modulator from Analog Devices designed for use from 30 MHz to 2200 MHz. It offers excellent phase accuracy and amplitude balance for high-performance modulation.
✓ Total Stock: 7,021 pcs
$ Price Range: $0.99

ADL5385ACPZ-R7 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
5,964 pcs
On Request
5964 pcs On Request 1 On Request On Request 24+ On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
540 pcs
On Request
540 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
517 pcs
On Request
517 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADL5385ACPZ-R7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
LO Frequency
Mounting Type
Noise Floor
Operating Voltage
Output Power
P1dB
RF Frequency
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Test Frequency
Voltage
View Similar Products (0)

ADL5385ACPZ-R7 Description

Short technical summary and product information.

The ADL5385ACPZ-R7 is a high-performance quadrature modulator fabricated using Analog Devices' advanced silicon germanium bipolar process. It operates across a wide frequency range of 30 MHz to 2200 MHz, making it suitable for various communication systems.



Key electrical specifications include a 1 dB output compression of 11 dBm at 350 MHz, a noise floor of -159 dBm/Hz at 350 MHz, and sideband suppression of -50 dBc at 350 MHz. The device requires a single supply voltage ranging from 4.75 V to 5.5 V and consumes approximately 240 mA of current.



Designed for both intermediate frequency (IF) and direct radio frequency (RF) modulation, the ADL5385 takes signals from two differential baseband inputs and modulates them onto two carriers in quadrature. Its wide baseband input bandwidth supports direct baseband drive or drive from a complex IF.



This modulator is supplied in a 24-lead, RoHS-compliant LFCSP package with an exposed pad, designed for surface mount installation. Typical applications include radio-link infrastructure, cable modem termination systems, UHF/VHF radio, wireless infrastructure systems, and WiMAX/broadband wireless access systems.

ADL5385ACPZ-R7 Quick Information

Product Type: RF Modulator
Canonical Name: ADL5385 Quadrature Modulator

ADL5385ACPZ-R7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADL5385ACPZ-R7 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADL5385ACPZ-R7 Features

  • Operates from 30 MHz to 2200 MHz frequency range.
  • Features 11 dBm 1 dB compression point.
  • Low noise floor of -159 dBm/Hz.
  • Single supply voltage from 4.75 V to 5.5 V.
  • Packaged in a 24-lead LFCSP for surface mounting.

ADL5385ACPZ-R7 Applications

  • Ideal for radio-link infrastructure.
  • Used in cable modem termination systems.
  • Suitable for UHF/VHF radio applications.
  • Supports wireless infrastructure systems.
  • Applicable to WiMAX/broadband wireless.

ADL5385ACPZ-R7 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating frequency range of the ADL5385ACPZ-R7?

The ADL5385ACPZ-R7 operates from 30 MHz to 2200 MHz.

What is the supply voltage for the ADL5385ACPZ-R7?

The device requires a supply voltage between 4.75 V and 5.5 V.

What is the 1 dB output compression point?

The 1 dB output compression is 11 dBm at 350 MHz.

What is the noise floor of the ADL5385ACPZ-R7?

The noise floor is -159 dBm/Hz at 350 MHz.

What is the package type for the ADL5385ACPZ-R7?

The ADL5385ACPZ-R7 is supplied in a 24-lead LFCSP package with an exposed pad.
