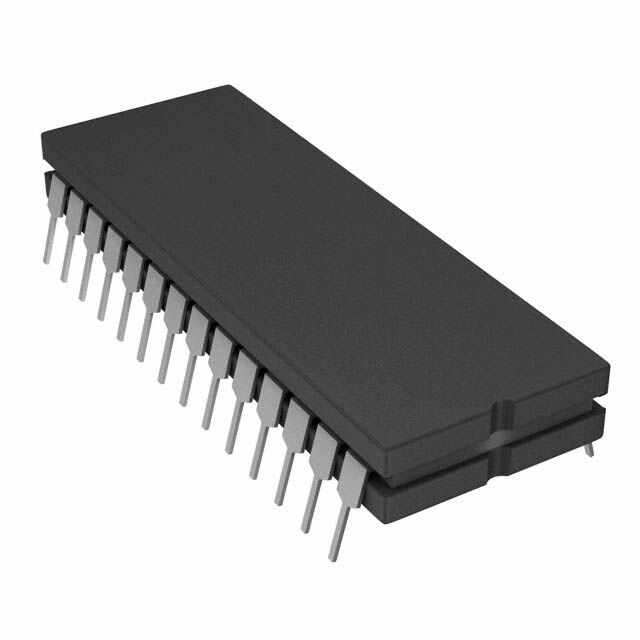

The ADG506ATQ/883B is an analog switch IC manufactured by Analog Devices. This component is designed for specialized analog switching applications, featuring 16 input channels and a single output channel. It operates within a dual supply voltage range of 10.8V to 16.5V and has a maximum operating temperature of 125°C. The on-state resistance is specified at 700Ω, with propagation delays of 300ns and turn-on/turn-off times of 450ns. The device is housed in a CDIP package with 28 pins, suitable for through-hole mounting.
This IC is part of the Analog Switches - Special Purpose category, indicating its use in specific circuit designs where precise analog signal routing is required. The operating temperature range from -55°C to 125°C makes it suitable for demanding environments. Its electrical characteristics, including supply voltage and current ratings, are detailed to ensure proper integration into system designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is from -55°C to 125°C.
The on-state resistance is 700 Ohms.
The package type is CDIP.
It has 16 input channels and 1 output channel.
