| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Body Material | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

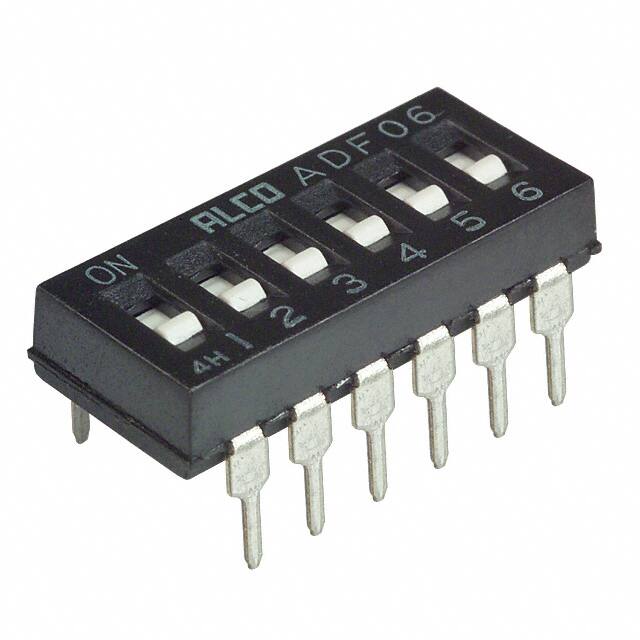

This TE Connectivity ADF06 is a slide DIP switch designed for through-hole mounting. It features a Single Pole Single Throw (SPST) circuit configuration with 6 positions, allowing for precise control in electronic applications.
The switch is rated for a current of 25mA and a voltage of 24VDC. It has a contact finish of Gold and is constructed with a Copper Alloy contact material. The actuator type is a standard slide, with both flush and recessed actuator levels available. The height above the board is 0.189 inches (4.80mm), and the pitch is 0.100 inches (2.54mm).
Operating within a temperature range of -30°C to 85°C, this DIP switch is built with a Polyphenylene Sulfide (PPS) body material. It offers a mechanical and electrical life of 1,000 cycles. The switch is also specified as washable, indicating suitability for certain cleaning processes during PCB assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -30°C to 85°C.
The ADF06 DIP switch uses through-hole mounting.
The current rating is 25mA.
The voltage rating is 24VDC.
The ADF06 DIP switch has 6 positions.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
