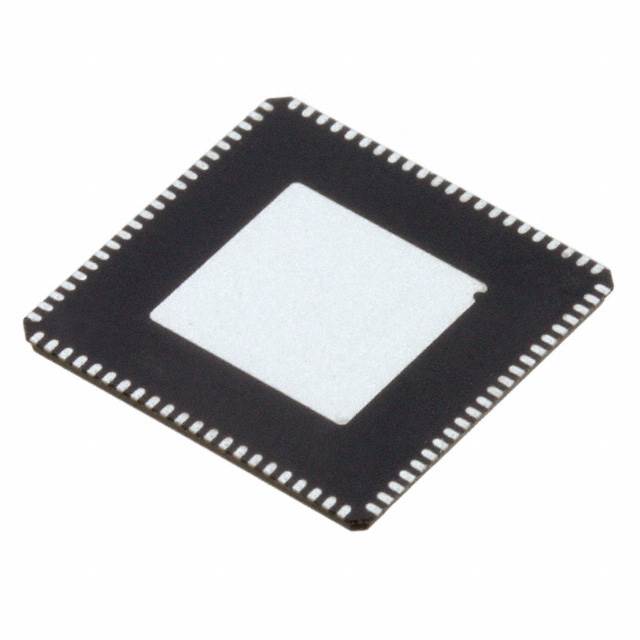

AD9548BCPZ-REEL7 The AD9548BCPZ-REEL7 is a quad/octal input network clock generator/synchronizer from Analog Devices. It supports input frequencies up to 750 MHz and output frequencies up to 450 MHz with CMOS, LVDS, LVPECL logic.
Mfr Part #:

AD9548BCPZ-REEL7

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD9548BCPZ-REEL7 is a quad/octal input network clock generator/synchronizer from Analog Devices. It supports input frequencies up to 750 MHz and output frequencies up to 450 MHz with CMOS, LVDS, LVPECL logic.
✓ Total Stock: 1,600 pcs

AD9548BCPZ-REEL7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
1,600 pcs
On Request
1600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD9548BCPZ-REEL7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Main Purpose
Mounting Type
Number of Circuits
Operating Temperature
Output
PLL
Ratio
Supplier Device Package
Voltage
View Similar Products (0)

AD9548BCPZ-REEL7 Description

Short technical summary and product information.

The AD9548BCPZ-REEL7 is a quad/octal input network clock generator/synchronizer from Analog Devices Inc. It is designed for synchronization applications in Ethernet, SONET/SDH, and Stratum networks. The device accepts up to four differential or eight single-ended reference inputs with frequencies from 1 Hz to 750 MHz. It generates output clocks up to 450 MHz with selectable CMOS, LVDS, or LVPECL logic levels.



The digital PLL features a programmable loop bandwidth from 0.001 Hz to 100 kHz, enabling precise jitter cleanup and holdover performance. The device operates from a supply voltage of 1.71V to 3.465V and is specified over the industrial temperature range of -40°C to 85°C. It is housed in a compact 88-lead LFCSP package (12x12 mm) for surface mount assembly.



Typical applications include network synchronization, reference clock jitter cleanup, GPS 1PPS synchronization, and Stratum 2/3E holdover. The AD9548BCPZ-REEL7 is supplied in tape and reel packaging for automated manufacturing.

AD9548BCPZ-REEL7 Quick Information

Product Type: Application Specific Clock/Timing IC
Canonical Name: AD9548BCPZ-REEL7 Quad/Octal Input Network Clock Generator/Synchronizer
Subcategory: Application Specific Clock/Timing

AD9548BCPZ-REEL7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD9548BCPZ-REEL7 Features

  • Quad/Octal input reference clock generator.
  • Supports input frequencies up to 750 MHz.
  • Output frequencies up to 450 MHz.
  • Operates from 1.71V to 3.465V supply.
  • Available in 88-lead LFCSP package.

AD9548BCPZ-REEL7 Applications

  • Ideal for SONET/SDH network synchronization.
  • Used in wireless base station controllers.
  • Suitable for Stratum 2/3E holdover applications.
  • Cleanup of reference clock jitter.
  • GPS 1 pulse per second synchronization.

AD9548BCPZ-REEL7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range?

1.71V to 3.465V.

What is the package type?

88-lead LFCSP (12x12mm).

What is the operating temperature range?

-40°C to 85°C.

Is this device RoHS compliant?

RoHS3 compliant (unverified).

What is the maximum output frequency?

450 MHz.

What logic outputs are supported?

CMOS, LVDS, LVPECL.

How many reference inputs does it have?

4 differential or 8 single-ended.

AD9548BCPZ-REEL7 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
AD9548BCPZ
AD9548BCPZ
Analog Devices / Maxim Integrated
The AD9548BCPZ is a quad/octal input network clock generator/synchronizer from Analog Devices. It supports input frequencies from 1 Hz to 750 MHz and provides output frequencies up to 450 MHz with CMOS, LVDS, or LVPECL logic.
View Part
